Product Information

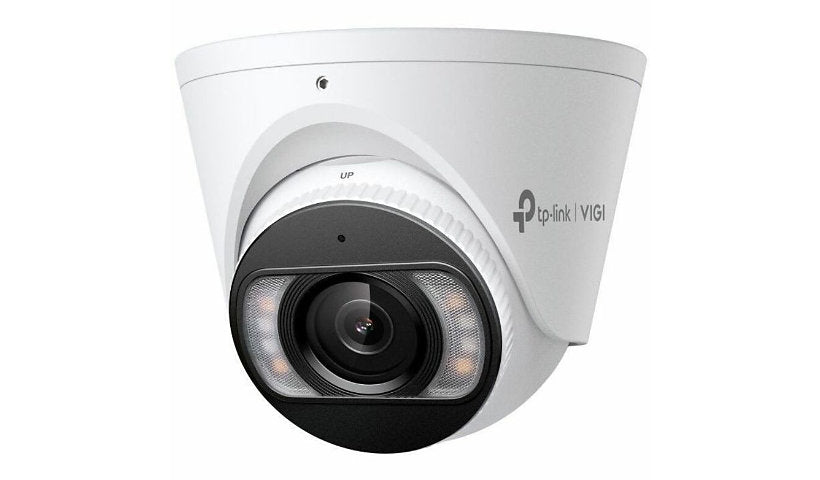

The TP-Link VIGI InSight S445 is a 4 MP turret recording 2688 x 1520 at 30 fps through a 2.8 mm lens with a 100 degree view, built for 24 hour full color video. It has human and vehicle classification, smart search, a built in mic, night vision up to 98 ft and H.265+, and runs on 12 V DC or PoE. IP67, ceiling or wall mount.
Key Features
- 4 MP full color
- 2.8 mm, 100 degree view
- Human, vehicle detection
- Night vision up to 98 ft
- Built in mic
- 12 V DC or PoE, IP67
Product Information
Brand: VIGI
Manufacturer: TP-LINK Technologies Co., Ltd
Model: InSight S445
Product Type: Network Camera
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet
Remote Management: Yes
Features: 3D Digital Noise Reduction, Alarm Triggering, Built-in Microphone, Day/Night, Human Detection, Mirror, Noise Reduction, Vehicle Detection, White Balance, Wide Dynamic Range
Connectivity
Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RTP, RTSP, SFTP, SSL/TLS, TCP/IP, UDP, UPnP
Network (RJ-45): Yes
Power
Power Source Type: DC, PoE
Max Power Consumption: 12 watt
Input Voltage: 12 V DC
Technical Information
Field of View: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
Ingress Protection Rating: IP67
Lens: Yes
Lens Mount Type: M12-mount
HD Recording: Yes
Night Vision Distance: 98.43 ft
Max Focal Length: 2.80 millimetre
Max Frame Rate: 30 fps
Video Formats: H.264, H.264+, H.264H, H.265, H.265+, H.265M
Lens Type: Fixed
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22
Max Operating Temperature: 140
Min Storage Temperature: -40
Max Storage Temperature: 140
Physical Characteristics
Form Factor: Turret
Camera Mechanical Design: Ceiling Mount, Wall Mount
Dimensions and Weight
Item Diameter: 4.4 inch
Height: 3.3 inch
Width: 4.4 inch
Length: 4.4 inch
Weight: 1.06 lb
