Product Information

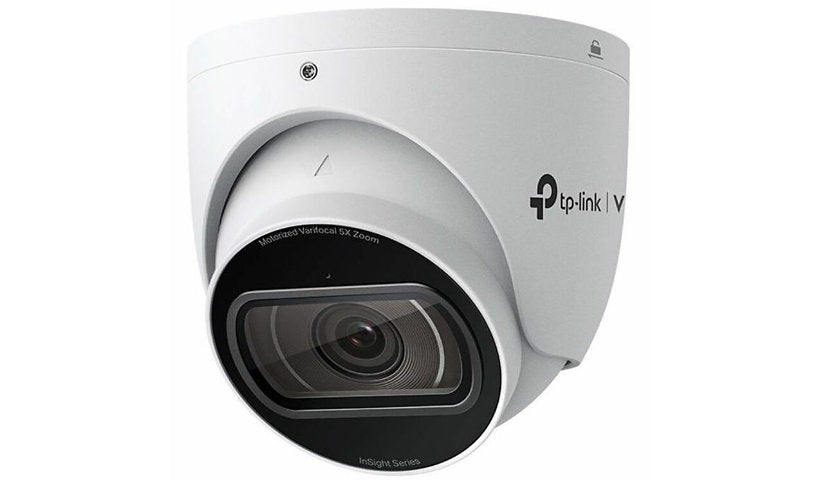

The TP-Link VIGI InSight S445ZI is a 4 MP turret recording 2688 x 1520 at 30 fps with a 2.7 to 13.5 mm motorized varifocal lens (5x). It has IR up to 197 ft, human and vehicle classification, line crossing and intrusion detection and privacy masking, and runs on 12 V DC or PoE. IP67 and IK10.
Key Features
- 4 MP, 2688 x 1520
- 2.7 to 13.5 mm, 5x
- IR up to 197 ft
- Human, vehicle detection
- Line crossing, intrusion
- 12 V DC or PoE, IP67
Product Information
Brand: TP-Link
Manufacturer: TP-LINK Technologies Co., Ltd
Model: S445ZI
Product Type: Network Camera
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet
Remote Management: Yes
Features: Cross Line Detection, Day/Night, HTTPS Encryption, Human Detection, Intrusion Detection, Live View, Noise Reduction, Password Protection, Privacy Masking, Vehicle Detection
Connectivity
Protocols: API, ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, ONVIF, RTP, RTSP, SFTP, SSL/TLS, TCP/IP, UDP, UPnP UDP
Network (RJ-45): Yes
Power
Power Source Type: DC, PoE
Max Power Consumption: 12 watt
Input Voltage: 12 V DC
Technical Information
Field of View: ? Horizontal FOV: 29.6°-102.0° ? Vertical FOV: 16.8°-53.8° ? Diagonal FOV: 34.1°-122.8°
Ingress Protection Rating: IP67
Lens: Yes
Lens Mount Type: Φ14
HD Recording: Yes
Night Vision Distance: 196.85 ft
Max Focal Length: 13.50 millimetre
Min Focal Length: 2.70 millimetre
Max Frame Rate: 30 fps
Video Formats: H.264, H.264 HP, H.264+, H.265, H.265 (MP), H.265+
Lens Type: Varifocal
Max Video Resolution: 2688 x 1520
Min Operating Temperature: -22
Max Operating Temperature: 140
Min Storage Temperature: -40
Max Storage Temperature: 140
Physical Characteristics
Form Factor: Turret
Camera Mechanical Design: Ceiling Mount, Wall Mount
Dimensions and Weight
Item Diameter: 4.4 inch
Weight: 1.57 lb
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
