Product Information

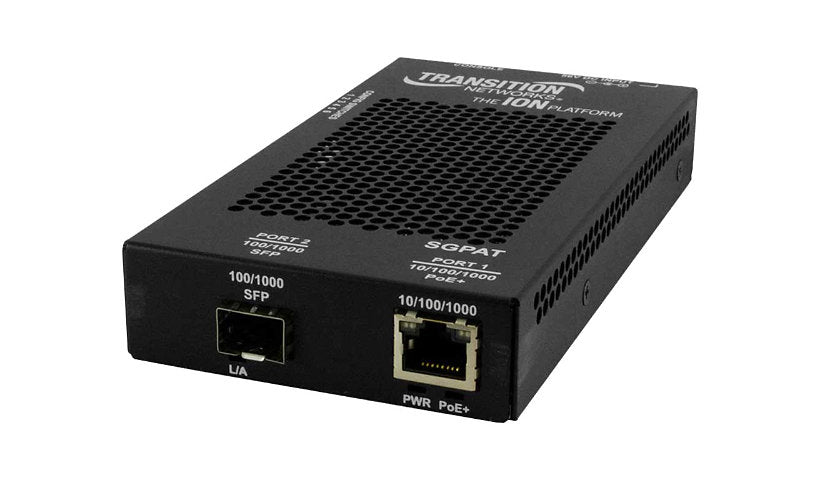

The Transition Networks SGPAT1040-105 is a stand-alone media converter that links an SFP fiber port (100 or 1000Base-X) to a 10/100/1000 RJ-45 copper port, and it can also power the copper device with PoE+. It supports jumbo frames, auto negotiation and link pass-through, and mounts on a DIN rail or a wall. An external power adapter and DIN rail kit are included.
Key Features
- 1 x 100/1000Base-X SFP slot
- 1 x 10/100/1000 RJ-45 port with PoE+
- Jumbo frames, link pass-through, auto negotiation
- DIN rail or wall mount, DIN rail kit included
- External power adapter
Product Information
Brand: Transition Networks
Manufacturer: Transition Networks
Product Line: Transition Networks Stand-Alone
Model: SGPAT1040-105
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 100Base-X, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Max Transfer Distance: 328 ft
MAC Address Table Size: 8K entries
Features: Auto-negotiation, Full duplex mode, Jumbo Frames support, Link Pass-Through, Wall mountable
Connectivity
Interface Provided: 1 x Ethernet 100Base-X/1000Base-X - SFP, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 female
Power Over Ethernet (PoE): PoE+
Left Connector SD Type: RJ-45
Right Connector Type (SD): SFP (mini-GBIC)
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Provided: 65.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: DIN Rail Mountable
Status Indicators: Link/activity, PoE, Port status, Power
Dimensions and Weight
Height: 1 inch
Width: 3.2 inch
Depth: 4.8 inch
Weight: 31.74 ounce
Included Items
Included Accessories: DIN-rail mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: EN 55022 Class A, EN55024, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
