Product Information

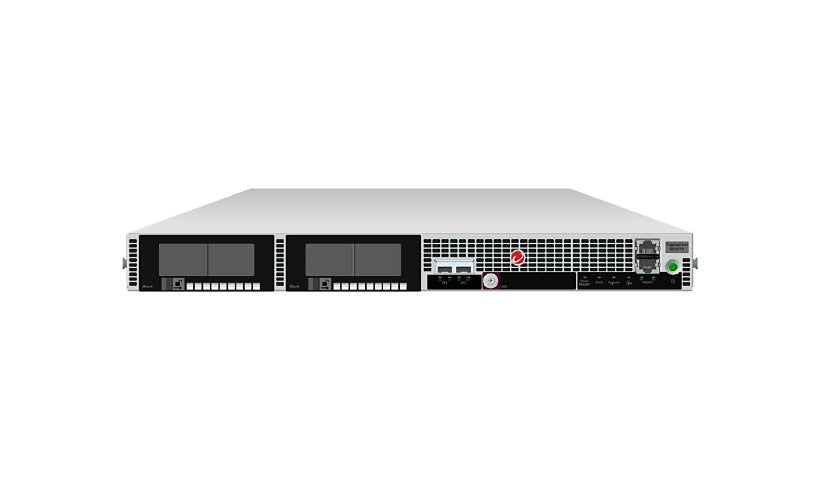

The Trend Micro TippingPoint Threat Protection System 5500TX is a 1U intrusion prevention appliance rather than a full firewall. It is rated at up to 5 Gbps IPS and 3.5 Gbps SSL inspection with under 60 µs latency, handling 30 million concurrent sessions, 400,000 new connections per second and 80,000 SSL connections. It has 64 GB of RAM, 32 GB of storage, 10GbE connectivity and dual redundant power supplies.
Key Features
- Up to 5 Gbps IPS
- 3.5 Gbps SSL inspection
- 30M concurrent sessions
- Under 60 µs latency
- 64 GB RAM
- 1U, dual redundant PSU
Product Information
Brand: Trend Micro
Manufacturer: 3Com - Tipping Point
Product Line: Trend Micro TippingPoint Threat Protection System
Model: 5500TX
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Remote Management: CLI, SNMP 2c, SNMP 3
Encryption: 256-bit AES, 384-bit SHA, ECDHE, RSA, SSL
Capacity: Concurrent sessions: 30000000, New connections per second: 400000, SSL connections per second: 3500, SSL connections: 80000
Network Device: IPS throughput: up to 5 Gbps, Latency: < 60 µs, SSL inspection throughput: 3.5 Gbps
Features: 3 fans, High Availability, Intrusion Prevention System (IPS), Management Information Base (MIB), Security Management System (SMS), URL filtering, Web threat protection
Connectivity
Expansion Slots: 2 (total) / 2 (free) x expansion slot
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 250 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Hard Drive Form Factor (metric): 4.6 cm
Processor Brand: Intel
Processor Type: Xeon
Processor Number: D-1559
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 64 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 32 GB
Hard Drive Form Factor: 1.8"
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 75,660 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Bypass, Link/activity, Stack, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 18.5 inch
Depth: 17.9 inch
Weight: 17.5 lbs
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
