Product Information

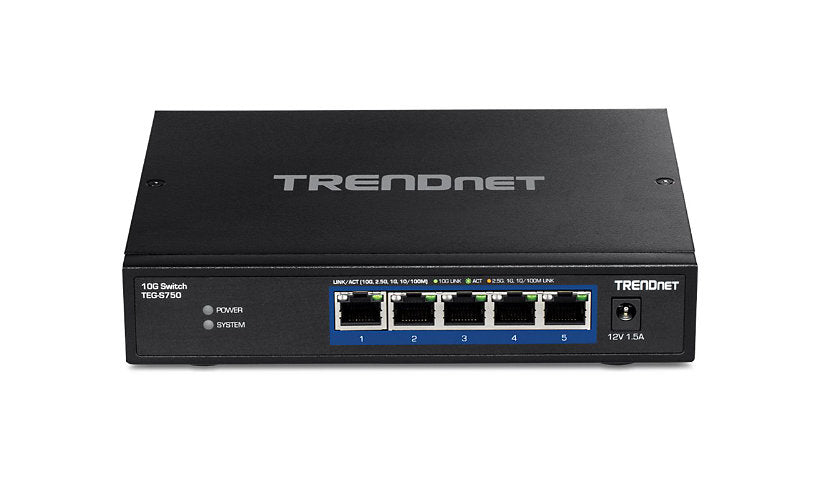

TRENDnet's TEG-S750 is a compact fanless unmanaged switch with five 10GBASE-T ports in a metal housing. It supports jumbo frames, sits on a desk or mounts on a wall and runs from a 12 V external adapter.
Key Features
- 5 x 10GBASE-T RJ-45 ports
- 44.64 Mpps forwarding
- Unmanaged, fanless
- Jumbo frames
- Desktop or wall mount
- 12 V external adapter
Product Information
Brand: TRENDnet
Manufacturer: Trendnet
Product Line: TRENDnet
Model: TEG-S750
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: No
Performance: Forwarding rate (64-byte packets): 44.64 Mpps, Switching capacity: 60 Gbps
Capacity: Buffer capacity (MB): 2
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: Fanless, Full duplex mode, Half duplex mode, Jumbo Frames support, Store and forward
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10GBase-T
Interface Provided: 5 x 10GBase-T RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100 - 240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 11.9 watt
Provided Voltage: 12 volt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: Up to 95% (non-condensing)
MTBF: 379,884 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Dimensions and Weight
Height: 1.3 inch
Width: 7.1 inch
Depth: 5.7 inch
Weight: 5.14 lbs
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - lifetime
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
