Product Information

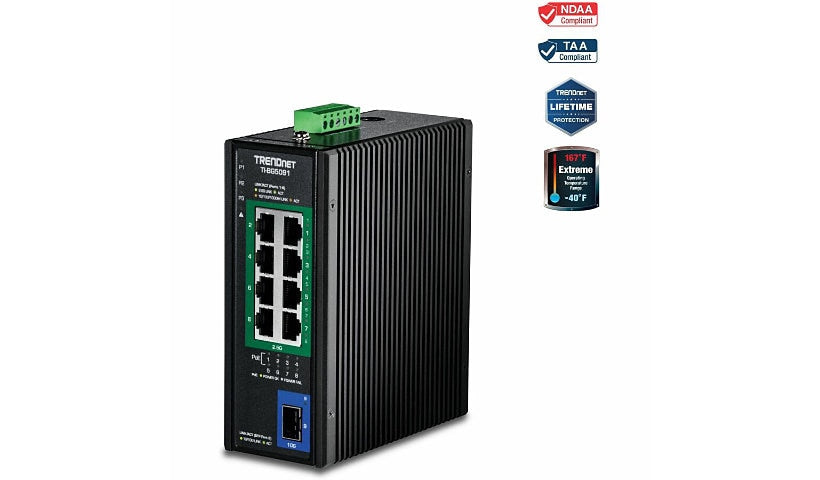

TRENDnet's TI-BG5091 is a hardened unmanaged switch with eight 2.5G PoE++ ports and one 10G SFP+ port, powering devices from a 480 W budget with Fast PoE. It offers 60 Gbps of capacity, multiple redundant power inputs and DIN rail and wall mounts. The power supply is sold separately; the source lists both IP50 and IP30/IP40.
Key Features
- 8 x 2.5G PoE++ ports
- 1 x 10G SFP+ port
- 480 W PoE budget
- 60 Gbps switching capacity
- Fast PoE
- Redundant power inputs
- DIN rail and wall mounts included
Product Information
Brand: TRENDnet
Manufacturer: TRENDnet
Model: TI-BG5091
Product Type: Ethernet Switch
Usage: Industrial, IP Camera, Network, VoIP Phone, Wireless Access Point
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Technology: 10GBase-X, 2.5GBase-T
Layer Supported: 2
Manageable: No
Features: IP30, IP40
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 1 x 10 Gigabit Ethernet Expansion Slot, 8 x 2.5 Gigabit Ethernet PoE++
PoE (RJ-45) Port: Yes
SFP+ Slots: 1
Power
Power Source: AC/DC, PoE++, Power Adapter, Power Supply
Input Voltage: 120 V AC, 230 V AC, 48 V DC, 57 V DC
Frequency: 50 hertz, 60 hertz
Plug Type: Terminal Block
Power Consumption: 10.08 watt
PoE Budget: 480 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: Yes
Technical Information
MTBF: 83000 hour
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 1.9 inch
Width: 6.1 inch
Depth: 4.8 inch
Weight: 1.39 lb
Warranty
Limited Warranty: Lifetime
