Product Information

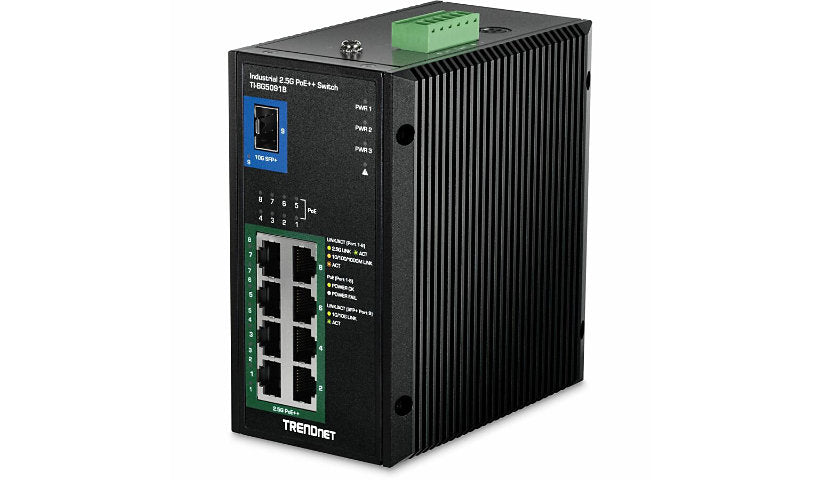

TRENDnet's TI-BG5091B is a hardened unmanaged switch with eight 2.5G PoE++ ports and one 10G SFP+ port, running on 24 to 57 V DC. It supports up to 480 W of PoE, 60 Gbps of switching capacity and redundant power inputs in an IP50 metal housing. The power supply is sold separately.
Key Features
- 8 x 1/2.5G RJ-45 PoE++ ports
- 1 x 10G SFP+ port
- Up to 480 W PoE
- 60 Gbps switching, fast PoE
- IP50 metal, alarm relay, redundant inputs
- DIN rail and wall mounts, PSU sold separately
Product Information
Brand: TRENDnet
Manufacturer: TRENDnet
Model: TI-BG5091B
Product Type: Ethernet Switch
Usage: Industrial, Network
Color Category: Black
Color Family: Black
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X, 2.5GBase-T
Layer Supported: 2
Manageable: No
Max Data Transfer Rate: 1.25 GBps
Features: Alarm Relay, IP50
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 1 x 10 Gigabit Ethernet SFP+ Expansion Slot, 8 x 1/2.5 Gigabit Ethernet PoE++ RJ-45 Network Port
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
SFP+ Slots: 1
Power
Power Source: AC/DC, PoE, Power Adapter, Power Supply
Input Voltage: 120 V AC, 23 V AC, 24 V DC, 57 V DC
Frequency: 50 hertz, 60 hertz
Plug Type: Terminal Block
Power Consumption: 12.40 watt
PoE Budget: 480 watt
Technical Information
MTBF: 11160603 hour
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 2.9 inch
Width: 5.3 inch
Depth: 4.9 inch
Weight: 3.09 lb
