Product Information

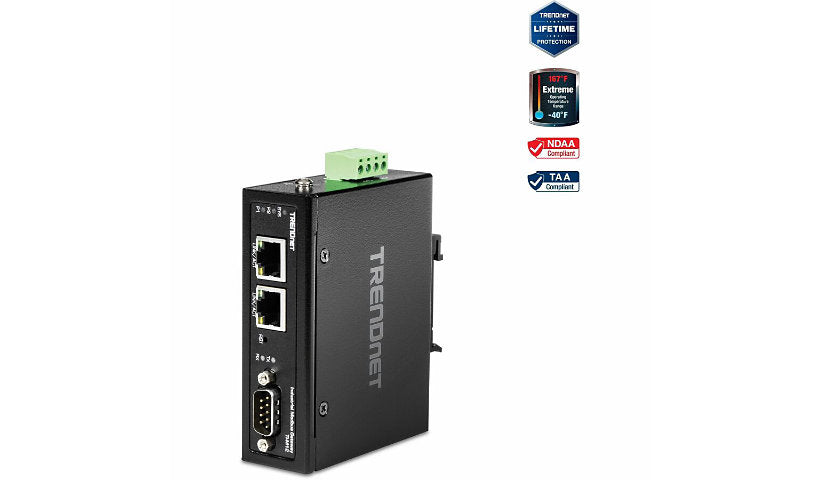

The TRENDnet TI-M12 is an industrial Modbus gateway that brings a Modbus serial device onto an IP network. It has one DB-9 serial port for RS-232, RS-422 or RS-485 (up to 32 RS-422/485 devices per port) at 50 bps to 921.6 Kbps, and two 10/100 RJ-45 ports with runs up to 100 m over Cat5e. It is set up by web or Telnet, takes 12 to 56 V DC through a 4 pin terminal block at about 3.84 W, has LED indicators and a grounding point, and mounts on a DIN rail or wall. Made in Taiwan. The listing mentions TRENDnet lifetime protection.
Key Features
- Industrial Modbus gateway
- 1 serial DB-9 port
- 2 x 10/100 Ethernet
- Up to 921.6 Kbps
- 12 to 56 V DC input
- DIN rail or wall mount
Product Information
Brand: TRENDnet
Manufacturer: TRENDnet
Model: TI-M12
Product Type: Device Server
Country of Origin: Taiwan
Network and Communication
Serial Port: Yes
Data Link Protocols: Fast Ethernet
Network Standard: 10/100Base-TX
Connectivity
Serial Ports: 1
Network (RJ-45): Yes
Network (RJ-45) Ports: 2
Power
Input Voltage: 12 V DC, 56 V DC
Input Voltage Range: 12V DC to 56V DC
Power Consumption: 3.84 watt
Physical Characteristics
Form Factor: DIN Rail Mountable, Wall Mountable
Dimensions and Weight
Height: 1.2 inch
Width: 4.1 inch
Depth: 3.1 inch
Weight: 5.43 ounce
Warranty
Limited Warranty: Lifetime
