Product Information

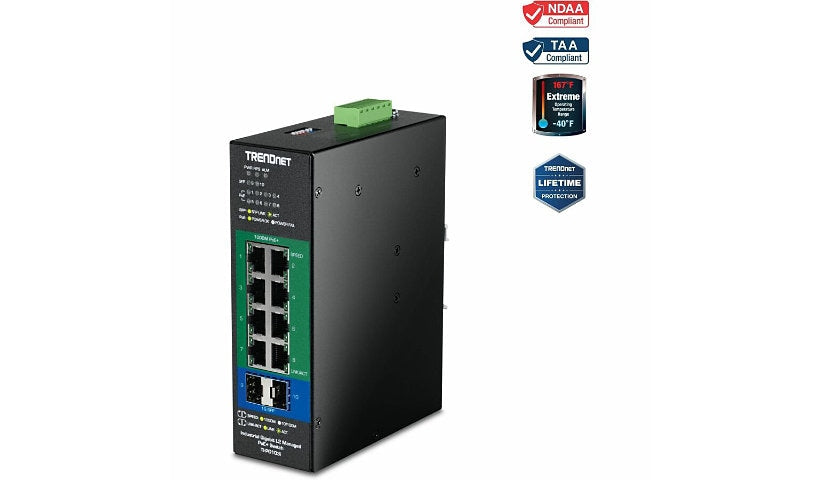

TRENDnet's TI-PG103i is a hardened Layer 2 managed DIN rail switch with eight Gigabit PoE+ ports and two SFP slots for 100 or 1000Base-FX fiber. It runs on 24 to 57 V DC with a built-in voltage booster, giving 240 W of PoE at 48 V or 124 W at 24 V, in an IP40 housing with an alarm relay.
Key Features
- 8 x Gigabit PoE+ ports
- 2 x SFP slots, 100/1000Base-FX
- 240 W PoE at 48 V DC, 124 W at 24 V DC
- 20 Gbps switching, PoE alive check
- IP40, alarm relay, surge protection
- DIN rail bracket included
Product Information
Brand: TRENDnet
Manufacturer: TRENDnet
Model: TI-PG103I
Product Type: Ethernet Switch
Usage: Industrial, Network
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: Gigabit Ethernet
Data Link Protocols: HTTP
Network Technology: 1000Base-T, 1000Base-X
Layer Supported: 2
Manageable: Yes
Max Data Transfer Rate: 128 MB/s
Features: Access Control List, Alarm Relay, Broadcast Storm Control, DHCP Relay, DHCP Snooping, Fanless, IP40, Loopback Detection, Remote Monitoring (RMON), Reset Button, Surge Protection
Connectivity
Expansion Slot Type: SFP (mini-GBIC)
Expansion Slot Details: 2 x Gigabit Ethernet SFP Expansion Slot, 8 x Gigabit Ethernet PoE+ RJ-45 Network Port
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
SFP Slots: 2
Power
Power Source: DC, Power Supply
Input Voltage: 24 V DC, 48 V DC
Plug Type: Terminal Block
Power Consumption: 13 watt
PoE Budget: 240 watt
Technical Information
MTBF: 460726 hour
Physical Characteristics
Form Factor: DIN Rail Mountable, Enclosure
Dimensions and Weight
Height: 2 inch
Width: 4.7 inch
Depth: 6.3 inch
Weight: 2.05 lb
Certifications and Listing
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
