Product Information

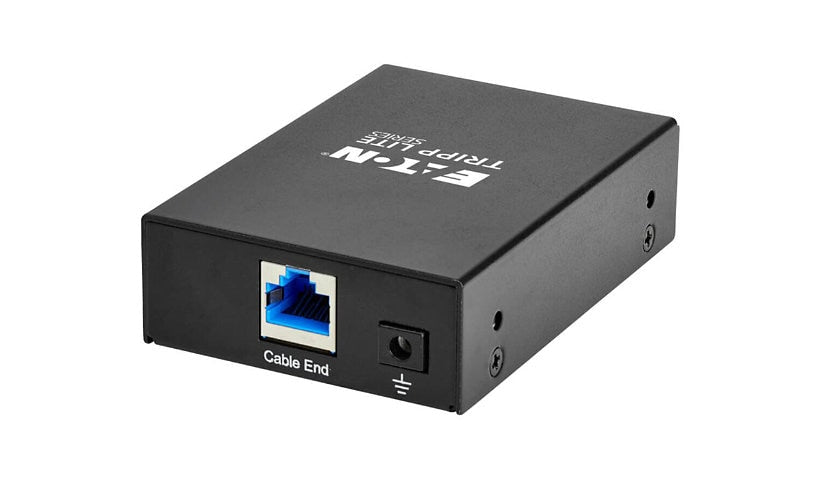

Protect Power over Ethernet equipment in security systems, home theaters, trade shows and digital signage with this in-line surge protector, which guards against power surges and electrostatic discharge. Connect it between the source and device with Cat5e/6 cables. Note: two units are needed to protect both the source and the device. Silicon avalanche diode technology provides low clamping voltage and a response time under one nanosecond, and both mid-span and end-span PoE are supported. It meets IEC 61000-4-2/-4-5 and EN 61000-4-5 standards. It supports IEEE 802.3af/802.3at and data speeds up to 1 Gbps, needs no software or power, and includes mounting hardware. Keep it within 300 ft (91 m) of the protected equipment. It is TAA compliant. Backed by a 2 year limited warranty.
Key Features
- In-line PoE surge protector
- 802.3af/at PoE, up to 1 Gbps
- Response time under 1 ns
- IEC 61000-4-2/-4-5 compliant
- TAA compliant
- 2 year limited warranty
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B110-SP-POE-1
Product Type: PoE surge protector
Technical Information
Features: ABS housing, ESD protection
Dimensions and Weight
Width: 3.6 inch
Height: 1 inch
Depth: 2.5 inch
Weight: 8.82 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Power Over Ethernet (PoE): PoE+
Input Connectors: 1
Interface Provided: 1 x Gigabit LAN - RJ-45
Dataline Surge Protection: Ethernet 10/100/1000Base-T - RJ-45 - 1 input line / 1 output line
Emergency Power Off: 2kA (8/20μs) lightning protection, 2kV EFT protection, 30 kV ESD protection (Air), 30 kV ESD protection (Contract), 4kV (10/700μs) lightning protection, 5kA (8/20μs) lightning protection, 6kV (8/20μs) lightning protection, Silicon avalanche diodes (SAD)
Input Connector Type: RJ-45
Output Connector Quantity: 1
Surge Response Time: 1 nanosecond
Surge Suppression: Yes
Form Factor (Power Device): External
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% RH (non-condensing)
Subcategory: Surge protection and power conditioning
Cables: Ground cable - external - 1 ft
Included Accessories: 2 mounting brackets, 4 mounting screws, Grounding kit cable
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
