Product Information
Guard high-power PoE++ equipment against static discharge, surges and cable discharge events with the B110-SP-POEC-10, a good fit for industrial AV, smart-building and automation networks. Data passes at up to 10 Gbps and power at up to 802.3bt Type 4 levels over Cat5e, Cat6 or Cat6a, so it suits AV over IP and other demanding links. Place it in line between the switch and the powered device, then connect the supplied ground wire. Note: protection is unidirectional, so two units are needed to protect both the source and the device. It mounts on a DIN rail and is TAA compliant. Backed by a 2 year limited warranty.
Key Features
- In-line PoE++ surge protector
- 10 Gbps, 100W, 802.3bt Type 4
- DIN rail mountable
- Grounding wire included
- TAA compliant
- 2 year limited warranty
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series

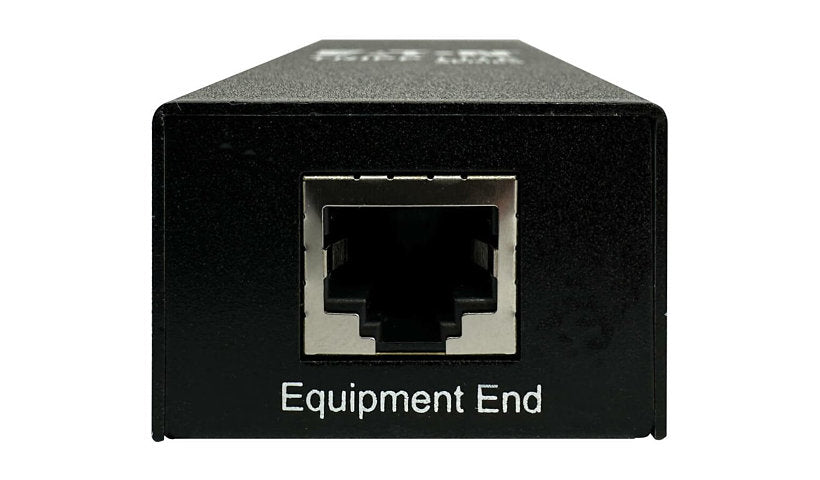

Model: B110-SP-POEC-10
Product Type: PoE surge protector
Technical Information
Features: Metal housing
Power Provided: 100 watt
Dimensions and Weight
Width: 2.5 inch
Height: 3.6 inch
Depth: 1 inch
Weight: 4.59 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Power Over Ethernet (PoE): PoE++
Input Connectors: 1
Interface Provided: 1 x 10 Gigabit LAN - RJ-45
Dataline Surge Protection: Ethernet 10/100/1000/10GBase-T - RJ-45 - 1 input line / 1 output line
Emergency Power Off: 15kV ESD protection (Air), 2kA (8/20µs) lightning protection, 2kV EFT protection, 6kV (8/20µs) lightning protection, 8kV ESD protection (Contract), Silicon avalanche diodes (SAD)
Input Connector Type: RJ-45
Output Connector Quantity: 1
Surge Response Time: 0.7 nanosecond
Surge Suppression: Yes
Form Factor (Power Device): DIN rail mountable
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% RH (non-condensing)
Subcategory: Surge protection and power conditioning
Cables: Ground cable - external - 1 ft
Included Accessories: 2 mounting brackets, 2 mounting screws, 2 x mounting anchors, DIN-rail adapter, Ground wire screw
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
