Product Information

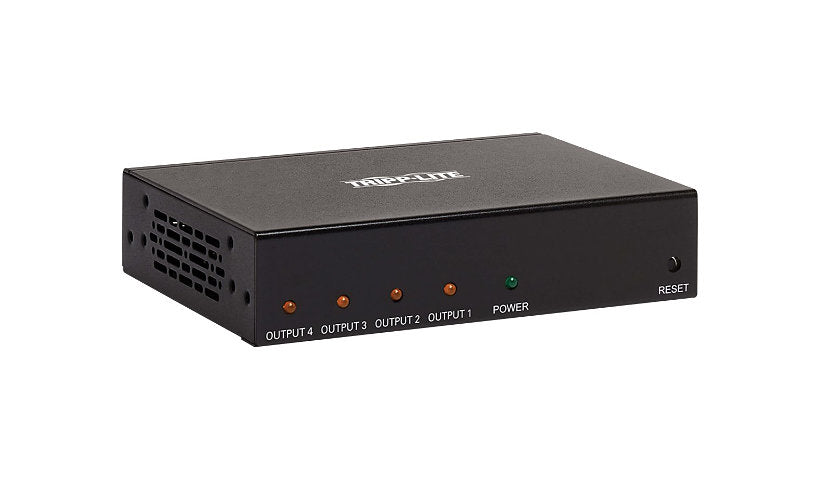

Quick to install, this UHD HDMI splitter is a great fit for home theaters and short-range digital signage in classrooms, offices, churches, restaurants, bars, hotels and trade shows. It takes one HDMI source and sends 4K audio and video to four displays at once, and up to three levels can be cascaded for as many as 64 displays. With standard 28 AWG HDMI cable, it distributes 4K x 2K at 60Hz up to 15 ft; keep source and display cables at 15 ft or shorter (Tripp Lite recommends P569-Series). Multi-resolution output lets each TV show its best resolution, so a 4K TV and an older 1080p TV can work together. It supports up to 4096 x 2160 at 60Hz, HDR, 4:4:4, HDCP 2.2, and DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 audio.
Key Features
- 1 input, 4 output HDMI splitter
- 4K at 60Hz (4096 x 2160), 4:4:4, HDR
- Multi-resolution output
- Cascadable up to 64 displays
- HDCP 2.2, TAA compliant
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite series
Model: B118-004-HDR
Product Type: Video/audio splitter
Technical Information
Features: 36-bit Deep Color support, 3D support, Dolby Digital Plus support, Dolby TrueHD support, DTS-HD support, EDID Management, HDR 4K60 4:4:4 compatible, LPCM 7.1 support, Reset button, x.v.Color support, xvYCC support
Dimensions and Weight
Width: 5 inch
Height: 1.2 inch
Depth: 3.9 inch
Weight: 12.63 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Ports: 4
Stackable: Cascadable
Status Indicators: Output, Power
Subcategory: Peripheral sharing and hubs
Switching Type: HDMI
Interface Provided: 1 x HDMI input Type A, 4 x HDMI output Type A
Port Quantity: 4
Port Type: HDMI
KVP Max Resolution: 4096 x 2160
Electric Current Required: 0.35 A
Frequency: 50/60 hertz
Output Current: 2 ampere
Provided Voltage: 5 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: 14 degree Fahrenheit
Operating Humidity: 0 - 85% (non-condensing)
Device Type: External power adapter
Rack Mounting Kit: Included
Included Accessories: 4 power plug adapters
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 2.2
TAA Compliant: Yes
