Product Information

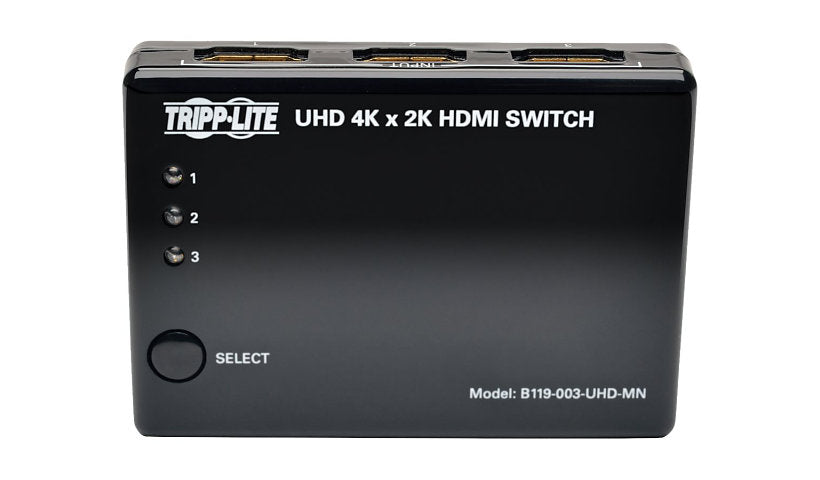

The B119-003-UHD-MN connects three HDMI sources, such as a Blu-ray player, game console and cable or satellite DVR, to one HDMI port on your display and lets you switch between them. You can also connect three computers or media centers for signage or presentations. Switch with the buttons or the included remote. An included IR extender receiver lets you hide the unit while still switching from up to 16 ft away, and when the current source turns off, it automatically moves to the next powered-on device. It supports UHD up to 3840 x 2160 at 30Hz with 48-bit True Color, DTS-HD, Dolby TrueHD and 7.1-channel audio, plus 3D, HDCP and EDID. No software, drivers or external power are required. Backed by a 3 year limited warranty.
Key Features
- 3 input, 1 output HDMI switch
- 4K at 30Hz (3840 x 2160)
- Remote and IR extender included
- Automatic switching
- No external power needed
- 3 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite series
Model: B119-003-UHD-MN
Product Type: Video/audio switch
Technical Information
Features: 3D support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD Master Audio support, HDCP compliant
Dimensions and Weight
Width: 3.2 inch
Height: 0.7 inch
Depth: 2.3 inch
Weight: 1.92 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop
Ports: 3
Subcategory: Peripheral sharing and hubs
Switching Type: HDMI
Interface Provided: 1 x HDMI output, 3 x HDMI input
Port Quantity: 3
Port Type: HDMI
KVP Max Resolution: 3840 x 2160
KVM V-Sync Rate At Max Resolution: 30 Hz
Included Accessories: IR receiver, Remote control
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: EDID compatible, RoHS
Warranty
Limited Warranty: 3 Year
