Product Information

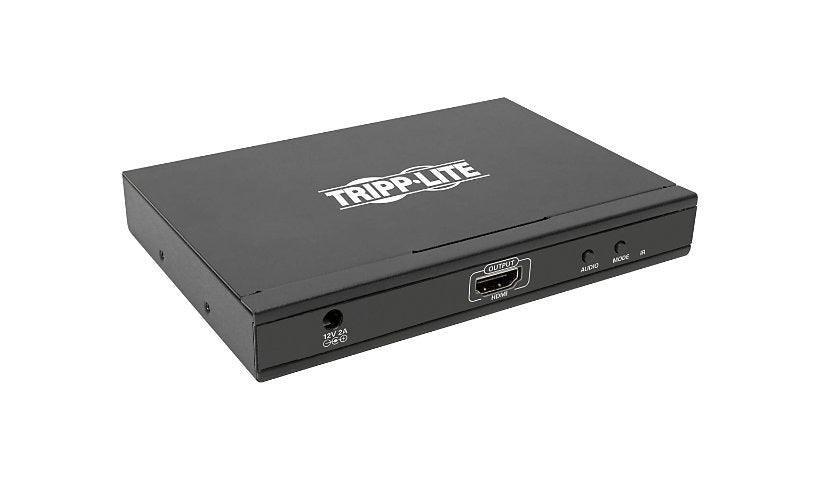

This 4-input HDMI multi-viewer connects four HDMI sources to one TV, projector or monitor and shows all four feeds at the same time, such as a media server, Blu-ray player, security camera and game console. It is ideal for home theaters, digital signage, broadcasting, video conferencing and security monitoring, saving the cost and space of extra displays. Choose quad, dual or full-screen mode with the push button or remote, switch audio independently of video, and pick from 12 preset layouts. It supports HD video up to 1080p at 60Hz and is plug-and-play.
Key Features
- 4 input, 1 output HDMI multi-viewer
- Quad, dual and full-screen modes
- Independent audio switching
- Up to 1080p at 60Hz
- IR remote, 12 presets
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite series
Model: B119-4X1-MV
Product Type: Video/audio switch
Technical Information
Features: Input selection buttons
Dimensions and Weight
Width: 4.1 inch
Height: 5.9 inch
Depth: 0.8 inch
Weight: 11.99 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop
Ports: 4
Status Indicators: HDMI, Power
Subcategory: Peripheral sharing and hubs
Switching Type: HDMI
Interface Provided: 1 x HDMI output, 4 x HDMI input
Port Quantity: 4
Port Type: HDMI
KVP Max Resolution: 1920 x 1080
Frequency: 50/60 hertz
Output Current: 2 ampere
Power Consumption Operational: 10 watt
Provided Voltage: 12 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Device Type: External power adapter
Included Accessories: 4 power plug adapters, Mounting kit, Remote control
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: cUL, FCC, HDCP 1.2, Plug and Play, REACH, RoHS, UL
Not sure this fits your setup? Send us the devices and ports you are connecting, and the DatorPro team will help you confirm compatibility, length and performance before you order.
