Product Information

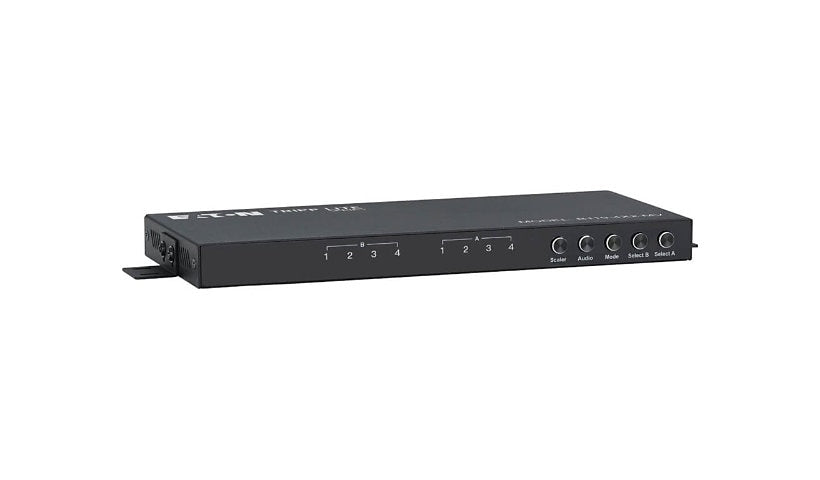

This matrix switch and splitter has four HDMI inputs and two HDMI outputs, so you can connect up to four sources, such as laptops, Blu-ray players, game consoles, Roku boxes or media servers, to two TVs, projectors or monitors in different rooms. It suits home theaters and signage in showrooms, restaurants, trade shows, schools and retail. Send the same image to both displays or different images to each, using the front buttons, IR remote or RS-232. View all four feeds in Quad mode, two in Dual mode (side by side or top/bottom), one in Full-Screen mode, or use Picture-in-Picture. It supports 4K with 4:4:4 color, 12-bit deep color and Dolby Digital, DTS and LPCM audio, with seamless switching and scaling.
Key Features
- 4 input, 2 output HDMI multi-viewer matrix
- Quad, dual, full-screen and PIP modes
- Seamless switching, scaling
- Front buttons, IR remote, RS-232
- 4K support
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B119-4X2-MV
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: 10.2 Gbps bandwidth, 12-bit Deep Color support, 4:4:4 chroma subsampling support, Dolby Digital support, DTS support, LPCM support, Multi-view presentation, Nickel plated connector, PIP function, Scaling function, Seamless switching
Dimensions and Weight
Width: 8.5 inch
Height: 0.7 inch
Depth: 3.6 inch
Weight: 19.05 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: HDMI
Max Transfer Distance: 33 ft
Status Indicators: Output, Power
Interface Provided: 1 x audio - phone 3.5 mm female, 1 x micro-USB (firmware update), 1 x micro-USB female, 1 x TOSLINK female, 2 x HDMI - 19 pin HDMI Type A female, 4 x HDMI - 19 pin HDMI Type A female
KVP Max Resolution: 3840 x 2160
Frequency: 50/60 hertz
Power Consumption Operational: 10 watt
Required Voltage: AC 100-240 volt
KVM V-Sync Rate At Max Resolution: 30 Hz
Max Operating Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 - 90% RH (non-condensing)
Device Type: External power adapter
Mounting Kit: Included
Cables: 1 x USB-A to Micro-USB Type B cable - 5 ft
Included Accessories: Remote control, Rubber feet
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.4
