Product Information
This multi-purpose video processor works in two modes: a 4x4 matrix with seamless switching, or a video wall. Four HDMI inputs up to 4K 60Hz feed four HDMI outputs, with 10 video wall layouts including 2x2, 1x2, 2x1, 1x3, 1x4, 3x1 and 4x1. Control it with front-panel buttons, the included IR remote, RS-232 or TCP/IP, and use the web GUI to visualize content across displays. It supports 4K at 60Hz with HDR, 4:4:4 color, HDCP 2.2 and LPCM, Dolby Digital and DTS audio. Multi-resolution support lets you mix 4K 60Hz, 4K 30Hz and 1080p displays, each showing its best resolution. It is plug-and-play with no software required.
Key Features
- 4x4 HDMI matrix switch with video wall controller
- 4K at 60Hz, HDR, 4:4:4
- 10 video wall modes
- Buttons, IR, RS-232 and TCP/IP control
- Multi-resolution output
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite series

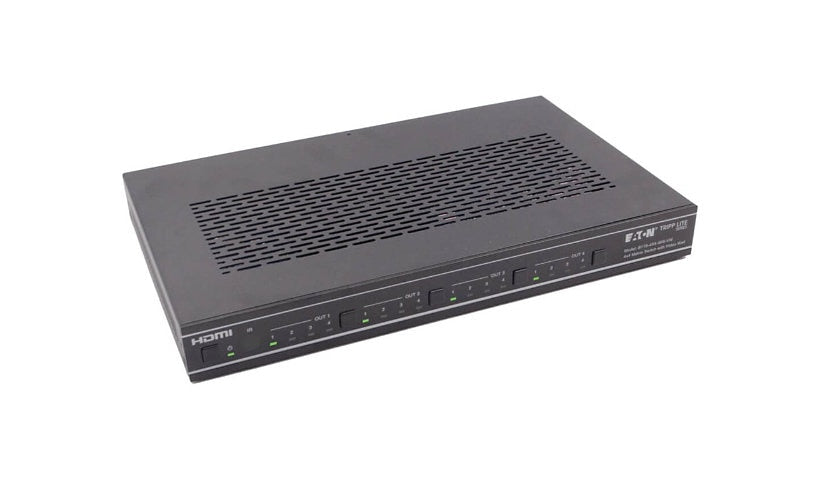

Model: B119-4X4-4K6-VW
Product Type: Video switch
Technical Information
Features: 12-bit Deep Color support, 3D support, 4:4:4 chroma subsampling support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, Dolby support, Dolby TrueHD support, DTS 96/24 support, DTS support, DTS-HD Master Audio support, HDR support, LPCM support, Metal housing, Multi resolution support, Pushbutton/Hotkey switching, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4
Dimensions and Weight
Width: 10.6 inch
Height: 1.2 inch
Depth: 6.5 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop
Ports: 2
Status Indicators: Power, Signal, Standby
Subcategory: Peripheral sharing and hubs
Switching Type: HDMI
Expansion Slots: Serial RS-232
Interface Provided: 4 x HDMI input female, 4 x HDMI output female
Port Quantity: 4
Port Type: HDMI
KVP Max Resolution: 3840 x 2160
Electric Current Required: 0.8 A
Frequency: 50/60 hertz
Output Current: 2.5 ampere
Provided Voltage: 12 volt
Required Voltage: AC 100-240 volt
Device Type: External power adapter
Cables: 1 x IR extension cable - 5 ft, 1 x RS-232 adapter
Included Accessories: 4 screws, International power plugs, IR receiver cable, IR remote, Mounting brackets, Remote control
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 2.2
