Product Information

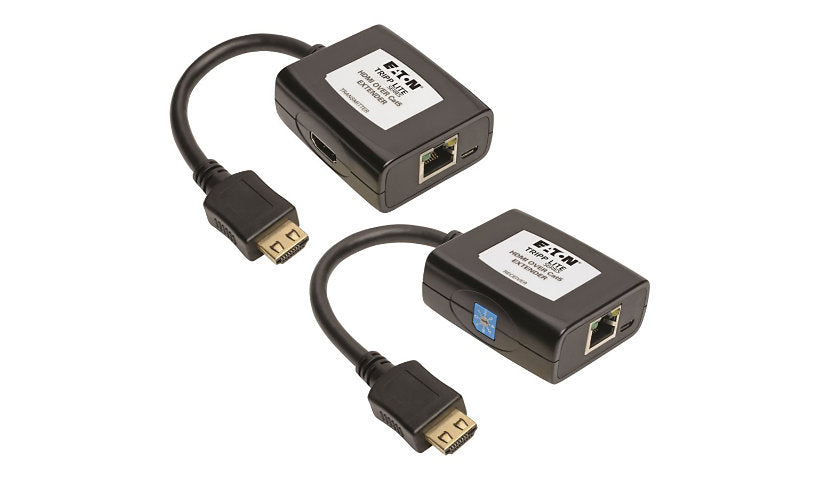

The B126-1A1-U kit includes a transmitter and receiver that work together to extend HDMI audio and video to a projector, monitor or TV, ideal for signage, trade shows, classrooms, churches and retail where the source is far away. Each unit has a built-in HDMI cable with a latching connector for a secure fit: the transmitter's cable connects to the source and the receiver's to the display, with Cat5e/6 between them (24 AWG solid-wire such as N202-Series works best). It supports HD up to 1080p (60Hz), stereo audio and HDCP, and built-in equalization lets you fine-tune the image. Backed by a 1 year limited warranty.
Key Features
- HDMI over Cat5/6 active extender kit
- 1080p at 60Hz, stereo audio, HDCP
- Built-in latching HDMI cables
- Equalization control
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B126-1A1-U
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: HDCP compliant, USB powered
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Max Transfer Distance: 125 ft
Transmission Medium: CAT 5/6
Interface Provided: 2 x HDMI - 19 pin HDMI Type A, 2 x micro-USB
KVP Max Resolution: 1080p
KVM V-Sync Rate At Max Resolution: 60 Hz
Cables: 2 x micro-USB to USB cable - 1 ft
Included Accessories: Screwdriver
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: Plug and Play, RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
