Product Information

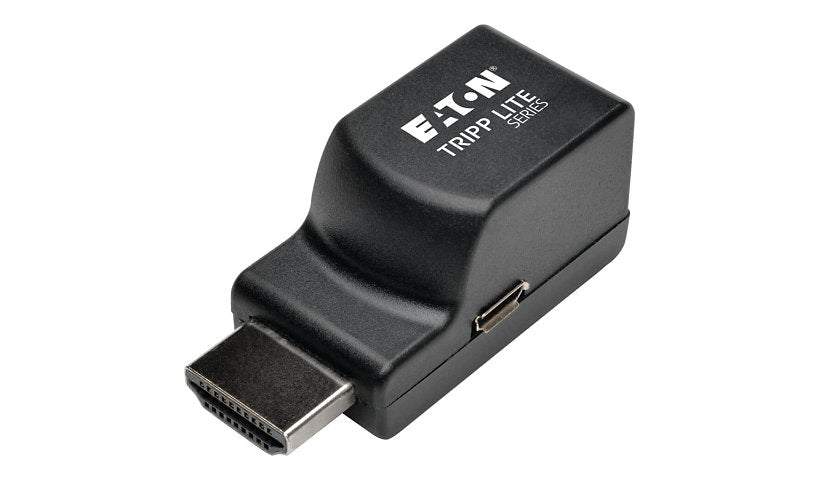

This low-profile passive receiver works with Tripp Lite B126-002 and B126-004 transmitters (sold separately) and connects to the transmitter with one Cat5e/6 cable. It extends 1080i (60Hz) up to 100 ft (30.5 m) and 1080p (60Hz) up to 50 ft (15.2 m). The built-in HDMI male connector plugs straight into the monitor, and with a B126-002 or B126-004 it supports stereo and 7.1-channel audio, 24-bit True Color and HDCP. It is plug-and-play with no software; no external power is needed, though an included USB Micro-B cable provides extra power if required. Backed by a 1 year limited warranty.
Key Features
- Passive HDMI over Cat5e/6 receiver
- 1080p up to 50 ft, 1080i up to 100 ft
- Built-in HDMI male connector
- For B126-002 / B126-004 transmitters
- TAA compliant
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B126-1P0-MINI
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: 24-bit True Color support, 7.1 channel audio support, HDCP compliant, USB powered
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Extender Type: Receiver
Max Transfer Distance: 100 ft
Status Indicators: Status
Transmission Medium: CAT 5e/6
Interface Provided: 1 x HDMI - 19 pin HDMI Type A male, 1 x micro-USB (power) - Type B female, 1 x network - RJ-45 female
KVP Max Resolution: 1080p
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Cables: 1 x micro-USB cable
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: Plug and Play, RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
