Product Information

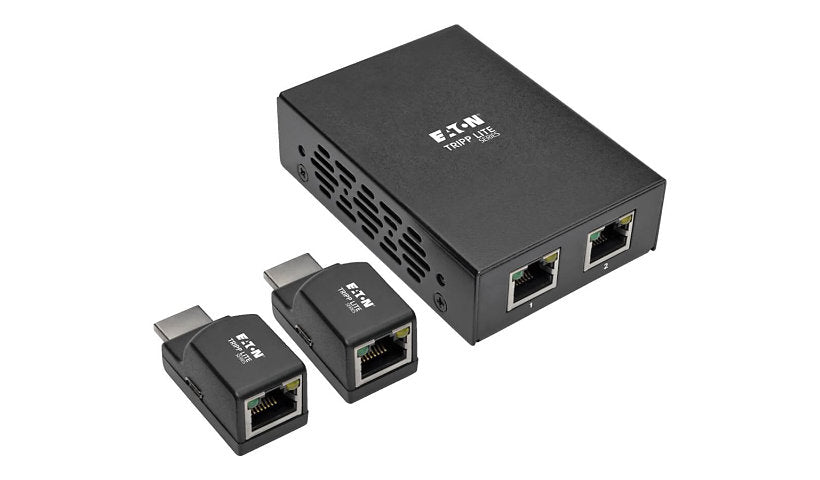

The B126-2P2M-POC kit includes a 2-port transmitter and two low-profile receivers that extend HDMI audio and video to two projectors, monitors or TVs, ideal for signage, trade shows, classrooms, churches, offices and retail. Connect the source to the transmitter with HDMI cable (such as P568-Series) and run Cat5e/6/6a to each receiver (24 AWG solid-wire such as N202-Series works best). The receivers plug straight into the displays and are powered over the cable, so no power supply is needed at the display end. It extends 1080p (60Hz) up to 50 ft and 1080i up to 100 ft, with 7.1-channel audio, 3D and HDCP. No software is needed, the transmitter mounts on a wall, rack or pole, and the kit is TAA compliant. Backed by a 1 year limited warranty.
Key Features
- 2-port HDMI over Cat5/6 extender kit
- 1080p up to 50 ft, 1080i up to 100 ft
- Two low-profile PoC receivers
- 7.1 audio, 3D, HDCP
- TAA compliant
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite Series
Model: B126-2P2M-POC
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: 3D support, 7.1 channel audio support, HDCP compliant, Pole mountable, Power over cable (PoC), Wall mountable
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Max Transfer Distance: 100 ft
Ports: 2
Transmission Medium: CAT 5/6
Interface Provided: 1 x HDMI (input) - 19 pin HDMI Type A female, 2 x network - RJ-45 female
KVP Max Resolution: 1080p
Frequency: 50/60 hertz
KVM V-Sync Rate At Max Resolution: 60 Hz
Device Type: External power adapter
Kit: Kit
Mounting Kit: Included
Cables: 2 x micro-USB to USB cable - 1 ft
Included Accessories: 2 x low-profile receivers
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: FCC, GSA, Plug and Play, REACH, RoHS
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
