Product Information

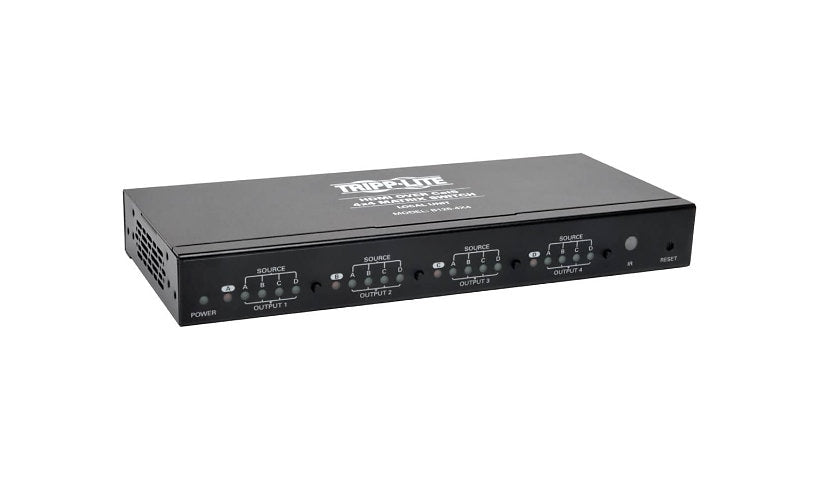

The B126-4X4 works with Tripp Lite remote receivers to share one or more HDMI sources across multiple projectors, monitors or TVs, ideal for signage, trade shows, presentations and retail where sources are far from displays. Connect sources with HDMI cable (such as P568-Series) and send to remote displays over Cat5e/6 (24 AWG solid wire such as N202-Series is best). Route any source to any display, or one source to many, using push buttons, RS-232 or the included remote. With B126-1A0 active receivers, 1080i reaches 175 ft and 1080p 125 ft; with B126-1P0 passive receivers, 1080i reaches 75 ft and 1080p 50 ft. Up to three B126-110 repeaters per channel add more range. It carries stereo audio and mounts on a wall, rack or pole. Backed by a 1 year limited warranty.
Key Features
- 4x4 HDMI over Cat5/6 matrix switch
- 1080p up to 125 ft (active receivers)
- Push button, RS-232 and remote control
- Stereo audio, HDCP
- Mounting hardware, TAA compliant
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B126-4X4
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: HDCP compliant
Dimensions and Weight
Width: 5.9 inch
Height: 1.2 inch
Depth: 3.9 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: HDMI
Max Transfer Distance: 175 ft
Transmission Medium: CAT 5/6
Interface Provided: 1 x RS-232 (management) - mini jack female, 4 x HDMI - 19 pin HDMI Type A female, 4 x network - RJ-45 female
KVP Max Resolution: 1080p
Frequency: 50/60 hertz
Device Type: External power adapter
Mounting Kit: Included
Cables: 1 x serial cable
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: Plug and Play, RoHS
Warranty
Limited Warranty: 1 Year
