Product Information

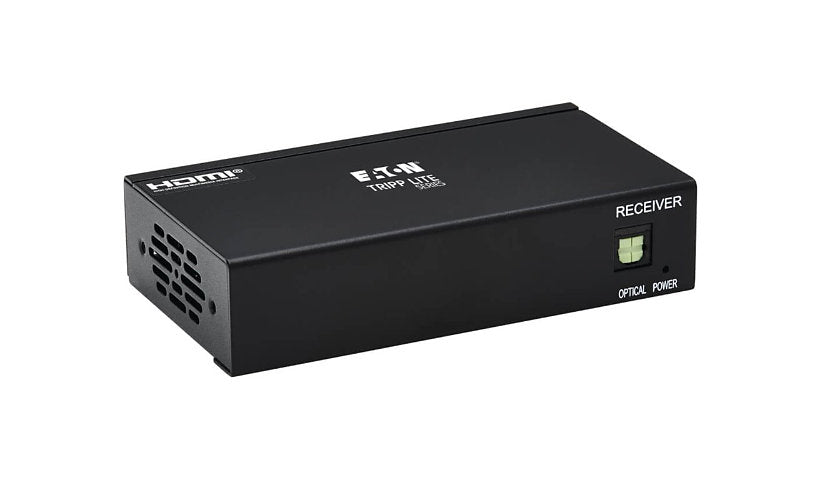

This 4K receiver is ideal for presentations and digital signage in conference rooms, schools, trade shows, houses of worship, retail and hotels where source and display are far apart. Paired with a B127A-Series transmitter, switch or splitter, the B127A-1A0-BH lets an HDMI screen sit as far as 230 ft (70.1 m) from its source over Cat6 you supply. Adding a B127A-010-H repeater (sold separately) extends the signal to 400 ft (121.9 m). It supports 3840 x 2160 at 60Hz with HDR, 4:4:4 color and HDCP 2.2, and Power over Cable powers the receiver through the Cat6 cable. Backed by a 1 year limited warranty.
Key Features
- HDMI over Cat6 receiver
- 4K at 60Hz (4:4:4) up to 230 ft
- For B127A-Series transmitters
- Power over Cable (PoC)
- HDR, HDCP 2.2, TAA compliant
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B127A-1A0-BH
Product Type: Video/audio extender
Form Factor: Wall / pole mountable / rack mountable
Technical Information
Features: 36-bit Deep Color support, 3D support, 4:4:4 chroma subsampling support, 7.1 channel audio support, HDR support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Video mirror mode
Dimensions and Weight
Width: 4.5 inch
Height: 1.1 inch
Depth: 2.5 inch
Weight: 8.78 ounce
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Extender Type: Receiver
Max Transfer Distance: 230 ft
Power Over Ethernet (PoE): PoC
Status Indicators: Status
Transmission Medium: CAT 6
Interface Provided: 1 x audio (output) - TOSLINK female, 1 x HDMI (output) - Type A female, 1 x network (input) - RJ-45 female
KVP Max Resolution: 3840 x 2160
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% (non-condensing)
Mounting Kit: Included
Rack Mounting Kit: Included
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.4, HDCP 2.2
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
