Product Information

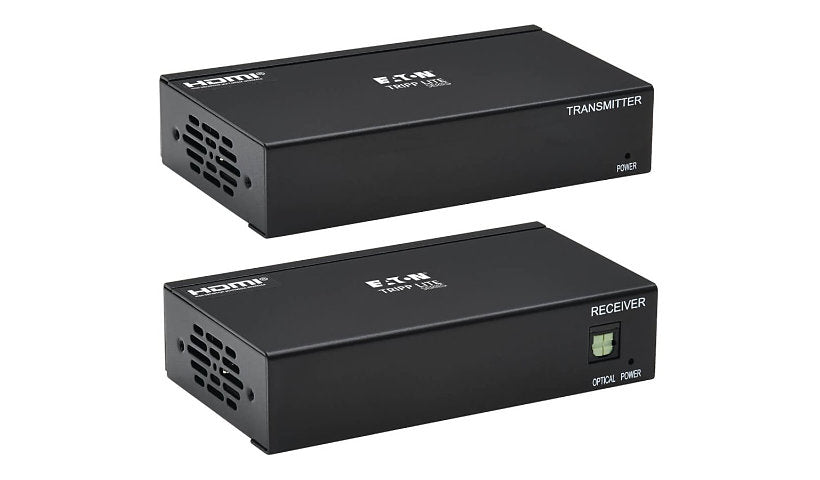

This complete transmitter and receiver kit is ideal for presentations and digital signage in conference rooms, schools, trade shows, meeting venues, houses of worship, retail and hotels where the source and display are too far apart for standard cables. The B127A-2A1-BHBH extends 4K signals from an HDMI source to two HDMI displays up to 230 ft away over user-supplied Cat6. Adding a B127A-010-H repeater or B127A-110-BH transceiver (sold separately) extends the reach to 400 ft or 460 ft. It supports Ultra HD up to 3840 x 2160 at 60Hz (HDMI 2.0) with uncompressed DTS-HD, Dolby TrueHD and 7.1-channel audio, HDR, HDCP 2.2 and 4:4:4 chroma subsampling. Power over Cable powers the receiver, so no outlet is needed at the far end. The transmitter's local HDMI port shows the image being sent, and the system works as a dual-output extender for two remote screens.
Key Features
- 2-port HDMI over Cat6 extender kit
- 4K at 60Hz (4:4:4) up to 230 ft
- Two display outputs
- Power over Cable (PoC)
- HDR, TAA compliant
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B127A-2A1-BHBH
Product Type: Video/audio extender
Form Factor: Wall / pole mountable / rack mountable
Technical Information
Features: 36-bit Deep Color support, 3D support, 4:4:4 chroma subsampling support, 7.1 channel audio support, HDR support, Integrated equalizer, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, Video mirror mode
Dimensions and Weight
Width: 4.5 inch
Height: 1.1 inch
Depth: 2.5 inch
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Max Transfer Distance: 230 ft
Power Over Ethernet (PoE): PoC
Status Indicators: Power
Transmission Medium: CAT 6
Interface Provided: 1 x HDMI (input) - Type A female, 1 x HDMI (local unit) - Type A female, 1 x network (input) - RJ-45 female, 1 x network (output) - RJ-45 female, 1 x TOSLINK female, 2 x HDMI (output) - Type A female
KVP Max Resolution: 3840 x 2160
Frequency: 50/60 hertz
Required Voltage: AC 100-240 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% (non-condensing)
Device Type: External power adapter
Mounting Kit: Included
Rack Mounting Kit: Included
Included Accessories: 2 mounting brackets
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.4, HDCP 2.2
TAA Compliant: Yes
