Product Information

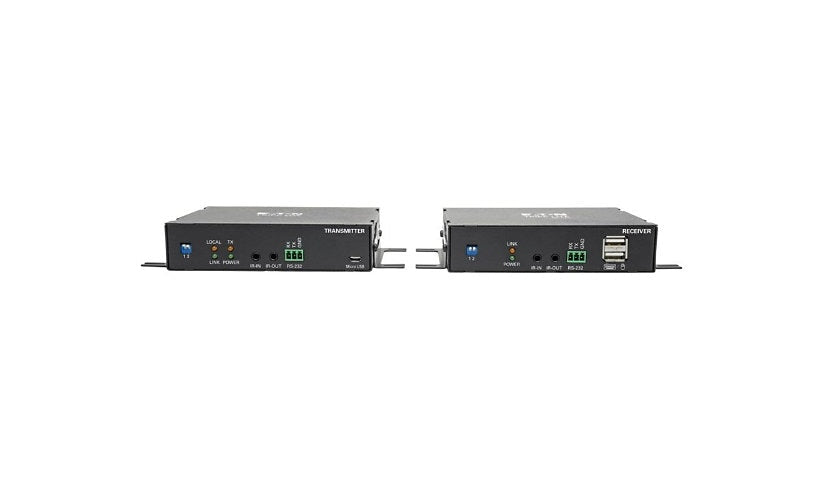

This complete transmitter and receiver system is ideal for presentations and signage in conference rooms, schools, trade shows, houses of worship and retail. The B127F-1A1-MMDDA extends 4K video and audio from a DisplayPort source to a DisplayPort monitor up to 985 ft (300 m) over user-supplied duplex multimode LC fiber. It supports 3840 x 2160 at 60Hz with HDR, 4:4:4 color, HDCP 2.2 and uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM audio. Built-in equalization automatically fine-tunes the picture, and it extends the touchscreen function of interactive flat-panel displays. DIP switches on both units select USB, IR or RS-232, and a local HDMI port connects displays with different resolutions without affecting the 4K signal.
Key Features
- DisplayPort over fiber extender kit
- 4K at 60Hz (4:4:4) up to 985 ft (300 m)
- USB, IR or RS-232 via DIP switch
- HDR, HDCP 2.2
- Multimode LC fiber
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B127F-1A1-MMDDA
Product Type: Video/audio/infrared/USB/serial extender
Form Factor: External
Technical Information
Features: 24-bit True Color support, 3D support, 4:4:4 chroma subsampling support, 4K UHD video streaming, AC3 support, Built-in DIP switch, CEC support, DTS support, HDR support, Infrared remote control support, Integrated equalizer, Metal housing, Wall mountable
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: DisplayPort
Max Transfer Distance: 984 ft
Optical Wave Length: 850 nm
Power Over Ethernet (PoE): PoC
Status Indicators: Link, Local, Power, Source
Transmission Medium: Fiber optic
Interface Provided: 1 x DisplayPort (receiver output) female, 1 x DisplayPort (transmitter input) female, 1 x HDMI (transmitter output) - Type A female, 1 x micro-USB (transmitter) - Type B female, 1 x network (receiver) - LC multi-mode female x 2, 1 x network (transmitter) - LC multi-mode female x 2, 1 x RS-232 (receiver) - 3 pin terminal block female, 1 x RS-232 (transmitter) - 3 pin terminal block female, 2 x IR (receiver) - mini jack female, 2 x IR (transmitter) - mini jack female, 2 x USB (receiver) - Type A female
KVP Max Resolution: 3840 x 2160
Frequency: 50/60 hertz
Power Supplies Installed: 2
Required Voltage: AC 100-240 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% RH (non-condensing)
Device Type: External power adapter
Kit: Extender Kit
Mounting Kit: Included
Included Accessories: 8 power plug adapters
Dimensions (WxDxH)/Weight Details: Receiver: 5 in x 3.9 in x 1.2 in / 8.1 oz, Transmitter: 5 in x 3.9 in x 1.2 in / 8.1 oz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.4, HDCP 2.2, USB 1.1
TAA Compliant: Yes
