Product Information

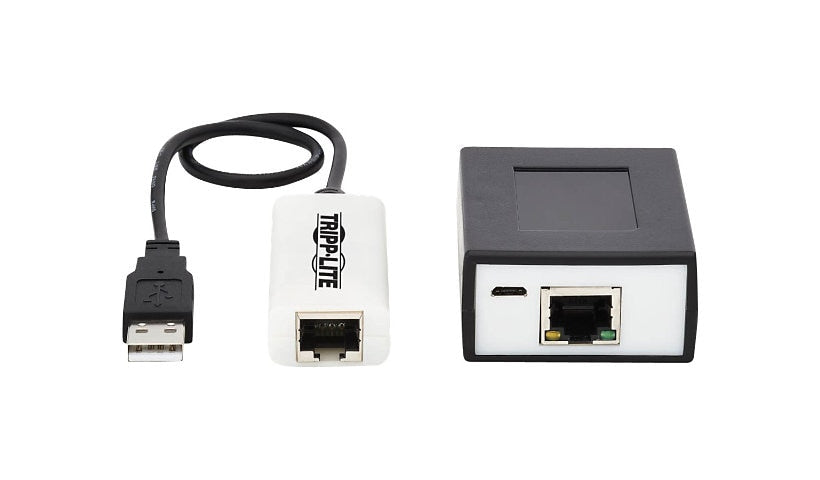

This plug-and-play kit connects your computer's USB-A port to four USB devices, such as a printer, webcam, flash drive and external hard drive, up to 164 ft (50 m) away. It includes a local transmitter and remote receiver and sends USB 2.0 over user-supplied Cat5/6 (such as N202-Series). Power over Cable powers the receiver through the Cat5/6 cable, so you can place both units away from outlets; LEDs show power and data activity. For high-density USB hard drives, a USB Micro-B port on the receiver accepts an optional 5V power supply. It supports USB 2.0 speeds up to 480 Mbps, is backward compatible with USB 1.1, and needs no network connection. Backed by a 1 year limited warranty.
Key Features
- 4-port USB 2.0 extender kit
- Up to 164 ft (50 m) over Cat5/6
- Power over Cable (PoC)
- Up to 480 Mbps
- Plug-and-play
- 1 year limited warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: B203-104-POC
Product Type: USB extender
Form Factor: External
Compatible With: P/N: U022-006, U030-006, U050-006
Technical Information
Data Transfer Rate: 480 MBps
Features: Power over cable (PoC)
Dimensions and Weight
Weight: 2.82 ounce
Color: Black, White
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Data Link Protocols: USB, USB 2.0
Max Transfer Distance: 164 ft
Power Over Ethernet (PoE): PoC
Transmission Medium: CAT 5/6
Interface Provided: 4 x USB 2.0 - Type A
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 0 - 85% (non-condensing)
Dimensions (WxDxH)/Weight Details: Receiver: 1 in x 1.9 in x 2.4 in, Transmitter: 1 in x 2.4 in x 0.6 in
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: USB 1.1, USB 2.0
Warranty
Limited Warranty: 1 Year
