Product Information
This 2 meter (6.6 ft) Eaton Tripp Lite Series breakout cable runs 8.3/125 single mode fiber for 40 and 100 Gb Ethernet, and it is optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks. It is designed for high density patching between data center MDFs and IDFs.

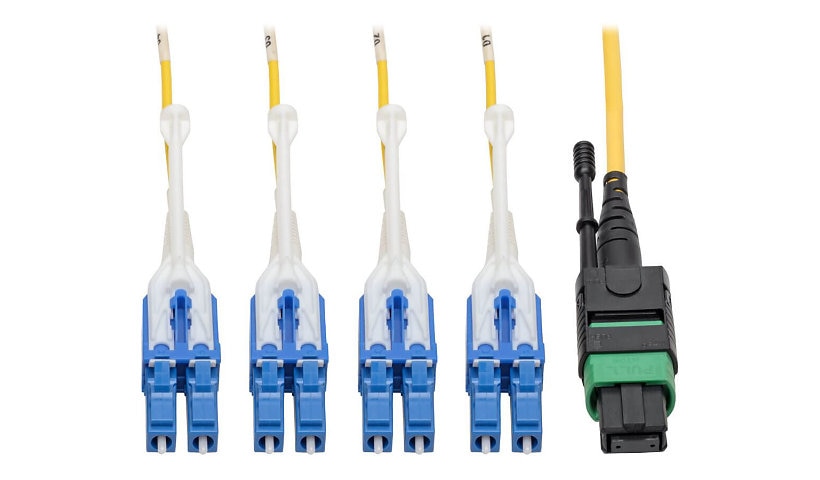

A female 12 fiber MTP/MPO APC connector splits into eight male LC/UPC connectors (four duplex pairs) with no splicing needed. The angled APC end keeps light from reflecting back into the laser, push/pull tabs make one handed install and removal easy, and ceramic ferrules are used throughout. The yellow jacket identifies it as single mode and is plenum rated for ceilings, walls and ducts.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N390-02M-8LC-AP
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: Single mode, 8.3/125 µm
Jacket: Plenum rated
Color: Yellow
Features: Plenum, Stranded, Angled Physical Contact (APC), Breakout, Ceramic ferrule, Push-pull connector
Connectors
Connectors: 1x MTP/MPO APC (female) to 8x LC/UPC (male), push/pull tabs
Ferrule: Ceramic
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Compliant standards: RoHS
Manufacturer warranty: Limited Lifetime
