Product Information

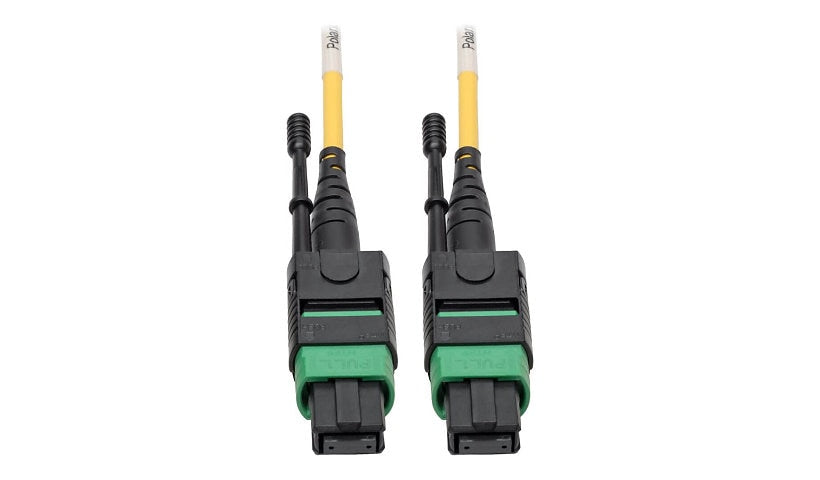

This 5 meter (16.4 ft) Eaton Tripp Lite Series cable carries 12 strands of 8.3/125 single mode fiber between two female MTP/MPO connectors with angled (APC) polish. It is made for 40 and 100 Gb Ethernet, including QSFP+ 40GBASE-PLR4 links.
Push/pull tabs make one handed install and removal easy, and the yellow jacket identifies it as single mode and is plenum rated.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N390-05M-12-AP
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 5 m (16.4 ft)
Fiber: Single mode, 8.3/125 µm
Fiber count: 12
Jacket: Plenum rated
Color: Yellow
Features: Plenum, Stranded, Angled Physical Contact (APC), Push-pull connector
Connectors
Connectors: MTP/MPO APC (female) to MTP/MPO APC (female), push/pull tabs
Polish: APC
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Compliant standards: RoHS
Manufacturer warranty: Limited Lifetime
