Product Information
This 1 meter (3.3 ft) Eaton Tripp Lite Series OM4 patch cable carries 40 and 100 Gb Ethernet traffic over 50/125 laser optimized multimode fiber (LOMMF), with male duplex LC connectors on both ends. It is designed for VCSEL and LED light sources in the 850 nm range, giving you a cost effective, high bandwidth link for LANs, SANs, data centers and central office interconnects.
The aqua low smoke zero halogen (LSZH) jacket identifies the cable as OM4 and limits toxic smoke in a fire, which helps in poorly ventilated spaces. It meets IEEE 802.3ae and TIA LOMMF standards and works with existing OM3 and OM4 rated 50/125 fiber. Because it complies with the Trade Agreements Act (TAA), it is eligible for GSA Schedule and other federal purchasing contracts. It is listed for use with the Tripp Lite N286-10G-SR-C transceiver.
General
Brand: Eaton
Product line: Eaton Tripp Lite Series
Part number: N820-01M-OM4TAA
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM4 laser optimized multimode, 50/125 µm
Fiber count: 2
Cable mode: Duplex
Jacket: LSZH
NEC rating: OFNR
Color: Aqua
Features: Halogen-free, 0.2 dB insertion loss, Bending radius 10mm (static), Bending radius 20mm (dynamic), Laser-optimized multimode fiber (LOMMF), Polycarbonate housing, VCSEL array technology, Wavelength of 850/1300 nm
Connectors

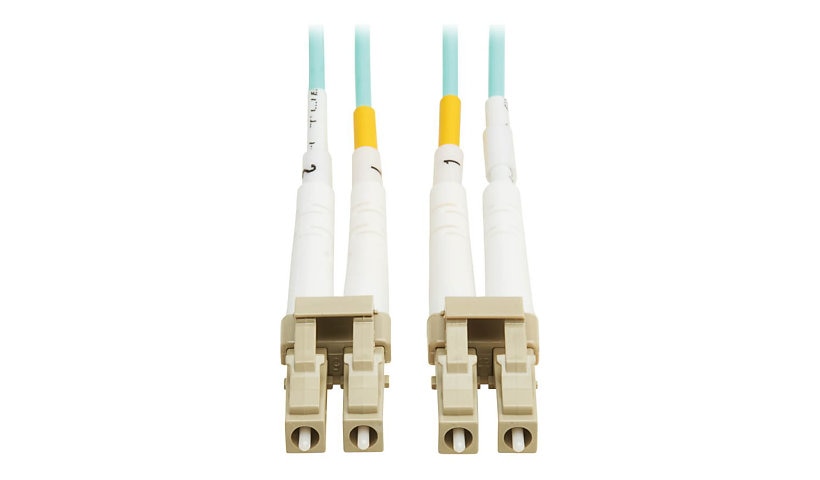

Connectors: LC (male) to LC (male)
Physical and Environmental
Operating temperature: -4°F to 158°F (-20°C to 70°C)
Compatibility
Transceiver support: N286-10G-SR-C
Compliance and Warranty
Compliant standards: IEEE 802.3ae
TAA compliant: Yes
Manufacturer warranty: Limited Lifetime
