Product Information

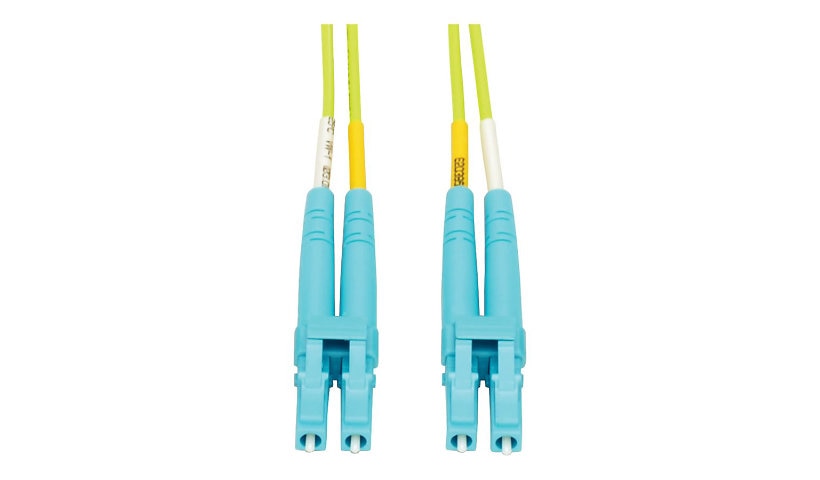

Network traffic keeps growing, and this 1 meter (3.3 ft) Eaton Tripp Lite Series OM5 patch cable is built to keep up. OM5 is wideband multimode fiber (WBMMF) that supports at least four wavelengths in the 850 to 950 nm range, and this LC to LC cable is well suited to 40 and 100 Gb Ethernet.
The 50/125 fiber is laser optimized for cost effective VCSEL light sources and is backward compatible with OM3 and OM4 applications. A lime green jacket makes OM5 easy to spot, and the short length helps cut down on rack clutter.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N820-01M-OM5
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM5 wideband multimode, 50/125 µm
Fiber count: 2
Cable mode: Duplex
Wavelength range: 850 to 950 nm (4 or more wavelengths)
Color: Lime green
Features: Laser-optimized multimode fiber (LOMMF), VCSEL array technology
Connectors
Connectors: LC (male) to LC (male)
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Compliant standards: IEEE 802.3ae
Manufacturer warranty: Limited Lifetime
