Product Information

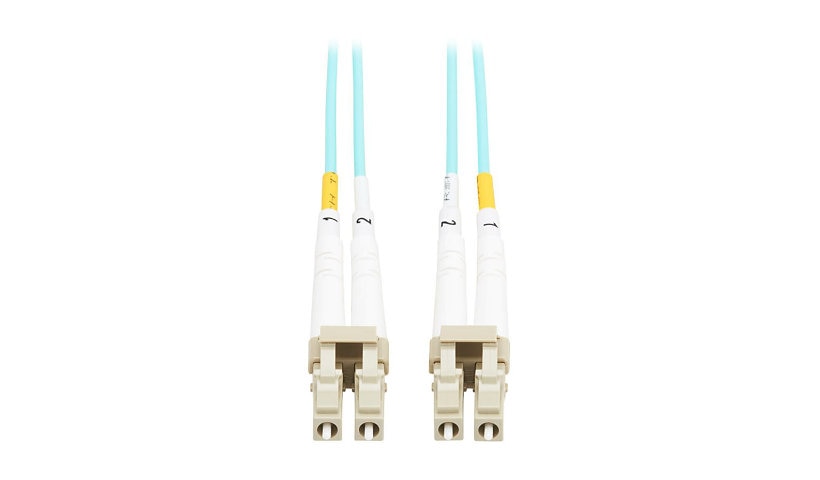

This 1 meter (3.3 ft) Eaton Tripp Lite Series OM3 patch cable uses 50/125 laser optimized multimode fiber (LOMMF) with male duplex LC connectors on both ends. It handles 10Gb Ethernet links of up to 300 meters at 850 nm and is built for VCSEL and LED light sources, a cost effective setup for LANs, SANs, data centers and central office interconnects.
The aqua OFNP (optical fiber nonconductive plenum) jacket is highly fire resistant, so the cable can go into plenum spaces like drop ceilings and raised floors. The cable meets IEEE 802.3ae and TIA LOMMF standards and works with existing OM3 rated 50/125 fiber. TAA compliance makes it eligible for GSA Schedule and other federal contracts.
General
Brand: Eaton
Product line: Eaton Tripp Lite Series
Part number: N820-01M-TAA
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM3 laser optimized multimode, 50/125 µm
Fiber count: 2
Cable mode: Duplex
Max 10Gb distance: 300 m at 850 nm
Jacket: OFNP (plenum rated)
Color: Aqua
Features: Halogen-free, < 0.3 dB insertion loss, Bending radius 10mm, Wavelength of 850/1300 nm
Connectors
Connectors: LC (male) to LC (male)
Physical and Environmental
Operating temperature: -4°F to 158°F (-20°C to 70°C)
Compliance and Warranty
Compliant standards: IEEE 802.3ae
TAA compliant: Yes
Manufacturer warranty: Limited Lifetime
