Product Information

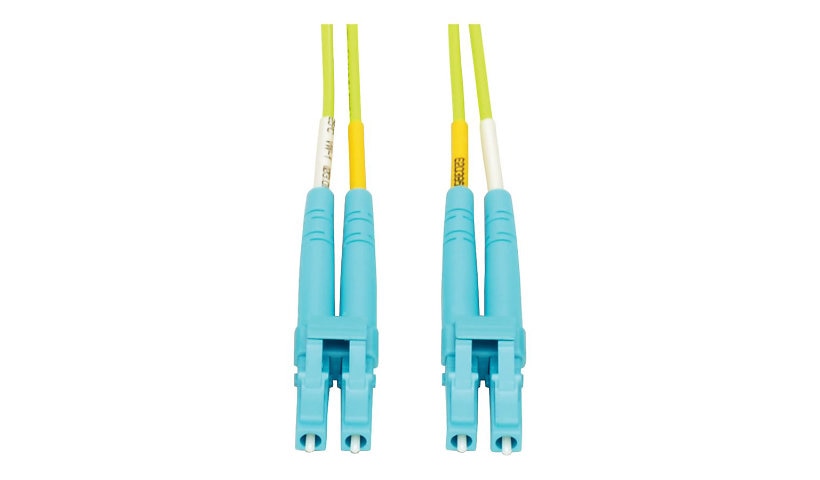

This 2 meter (6.6 ft) Eaton Tripp Lite Series OM5 patch cable is built for growing network traffic. OM5 is wideband multimode fiber (WBMMF) that supports at least four wavelengths in the 850 to 950 nm range, and this LC to LC cable is well suited to 40 and 100 Gb Ethernet in LANs, SANs, data centers and central offices.
The 50/125 fiber is laser optimized for cost effective VCSEL light sources and is backward compatible with OM3 and OM4 applications. The lime green low smoke zero halogen (LSZH) jacket makes OM5 easy to spot and limits toxic smoke in a fire, which helps in poorly ventilated areas.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N820-02M-OM5
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OM5 wideband multimode, 50/125 µm
Fiber count: 2
Cable mode: Duplex
Wavelength range: 850 to 950 nm (4 or more wavelengths)
Jacket: LSZH
Color: Lime green
Features: Laser-optimized multimode fiber (LOMMF), VCSEL array technology
Connectors
Connectors: LC (male) to LC (male)
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Compliant standards: IEEE 802.3ae
Manufacturer warranty: Limited Lifetime
