Product Information
Rated OM4 for 10Gb Ethernet, this 6 meter (19.7 ft) Eaton Tripp Lite Series patch cable carries clear data and voice signals up to 400 meters at 850 nm. It is a cost effective choice for LANs, SANs and high speed parallel interconnects in head ends, central offices and data centers.
Push/pull tab connectors are easy to reach in dense racks and let you install or remove the cable with one hand. The male LC connectors are tested to strict insertion loss standards and use premium ceramic ferrules made for 10Gb and faster links. The magenta LSZH jacket marks it as OM4 at a glance.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N821-06M-MG-T
Cable type: Patch cable
Package quantity: 1
Cable and Fiber
Length: 6 m (19.7 ft)
Fiber: OM4 laser optimized multimode, 50/125 µm
Fiber count: 2
Cable mode: Duplex
Max 10Gb distance: 400 m at 850 nm
Jacket: LSZH
Color: Magenta
Features: Halogen-free, Connectors with push/pull tabs, Laser-optimized multimode fiber (LOMMF)
Connectors

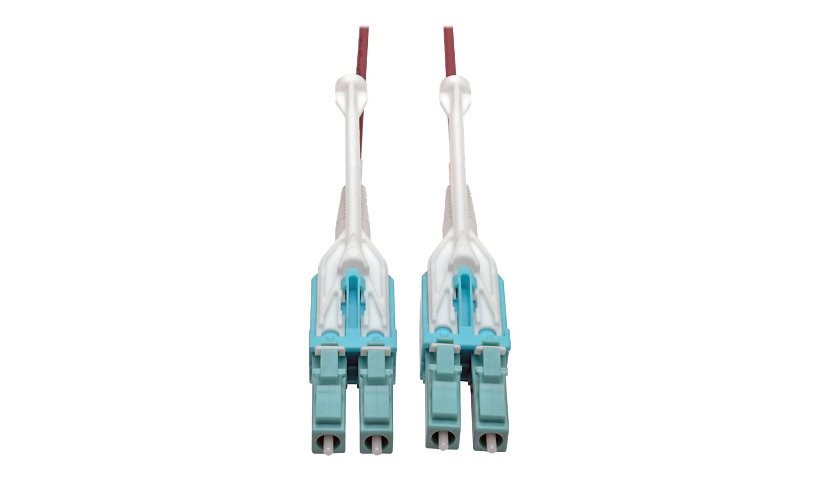

Connectors: LC (male) to LC (male), push/pull tabs
Ferrule: Ceramic
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Compliant standards: IEEE 802.3ae
Manufacturer warranty: Limited Lifetime
