Product Information

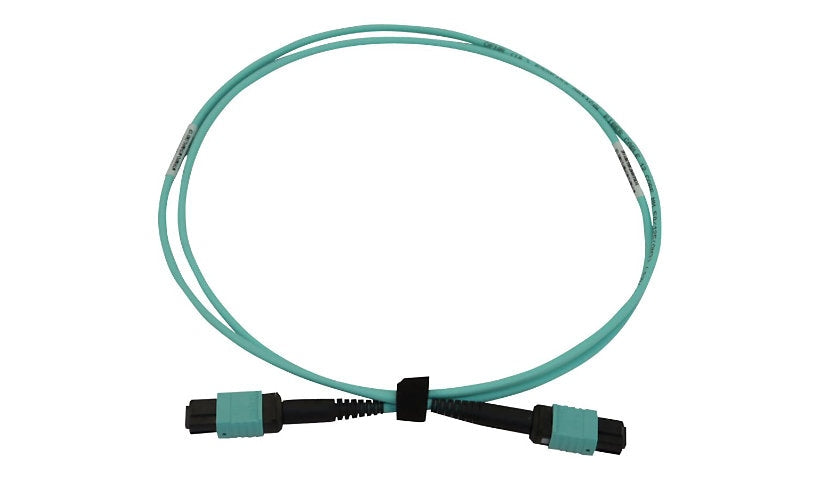

This 1 meter (3.3 ft) Eaton Tripp Lite Series cable carries 12 fibers of OM3 50/125 multimode between two female MTP/MPO PC connectors. It is designed for the higher bandwidth that high density patching needs, such as links between MDFs and IDFs in enterprise data centers, and it supports 40, 100 and 400 Gb Ethernet applications over short distances. Older 10 Gb and 25 Gb networks are supported too, which means the cable can stay in place when you upgrade to faster speeds.
The round aqua jacket identifies the cable as multimode in a busy patch panel or switch, which helps prevent costly mix ups. Its low smoke zero halogen (LSZH) construction limits toxic smoke if it ever burns, making it a sensible choice for areas with poor ventilation. A slim boot and aqua connector housing make one handed installation and removal easy.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N844B-01M-12-P
Cable type: Network cable
Package quantity: 1
Cable and Fiber
Length: 1 m (3.3 ft)
Fiber: OM3 multimode, 50/125 µm
Fiber count: 12
Jacket: LSZH
NEC rating: OFNR
Color: Aqua
Features: Halogen-free
Connectors
Connectors: MTP/MPO-12 PC (female) to MTP/MPO-12 PC (female)
Physical and Environmental
Diameter: 0.1 inch
Operating temperature: 14°F to 140°F (-10°C to 60°C)
Compliance and Warranty
Manufacturer warranty: Limited Lifetime
