Product Information

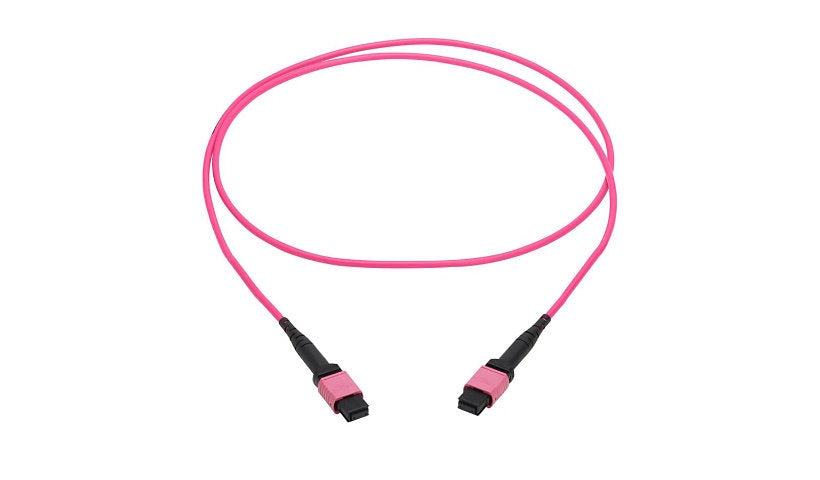

This 2 meter (6.6 ft) Eaton Tripp Lite Series cable carries 12 fibers of OM4 50/125 multimode between two female MTP/MPO-12 PC connectors. It extends high density connections between network gear in wiring closets, telecom rooms and data centers, is a good fit for 100G Ethernet, and also works on 10, 25 and 40 Gb networks.
The magenta OFNP rated jacket identifies the cable at a glance in a crowded panel. It complies with the Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.
General
Brand: Eaton
Product line: Eaton Tripp Lite Series
Part number: N845B-02M-12MTA
Cable type: Network cable
Package quantity: 1
Cable and Fiber
Length: 2 m (6.6 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Jacket: OFNP
Color: Magenta
Features: Halogen-free, 0.6 dB insertion loss, Bending radius 10mm
Connectors
Connectors: MTP/MPO-12 PC (female) to MTP/MPO-12 PC (female)
Physical and Environmental
Operating temperature: 32°F to 122°F (0°C to 50°C)
Compliance and Warranty
TAA compliant: Yes
Manufacturer warranty: Limited Lifetime
