Product Information

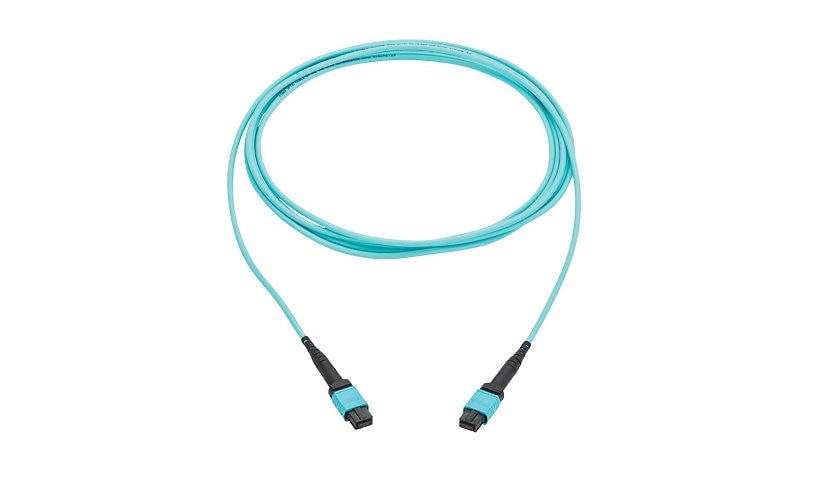

This 3 meter (9.8 ft) Eaton Tripp Lite Series cable carries 12 fibers of OM4 50/125 multimode between two female MPO-12 PC connectors wired for Type-B polarity. It extends high density connections between network gear in wiring closets, telecom rooms and data centers, is a good fit for 100G Ethernet, and also works on 10, 25 and 40 Gb networks.
The aqua OFNP rated jacket identifies the cable at a glance in a crowded panel. It complies with the Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.
General
Brand: Eaton
Product line: Eaton Tripp Lite Series
Part number: N845B-03M-12TAA
Cable type: Network cable
Package quantity: 1
Cable and Fiber
Length: 3 m (9.8 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Jacket: OFNP
NEC rating: OFNP
Color: Aqua
Features: 0.6 dB insertion loss, 35 dB return loss, Bending radius 10mm (static), Bending radius 20mm (dynamic)
Connectors
Connectors: MPO-12/PC (female) to MPO-12/PC (female)
Physical and Environmental
Diameter: 0.1 inch
Operating temperature: -4°F to 158°F (-20°C to 70°C)
Compliance and Warranty
TAA compliant: Yes
Manufacturer warranty: Limited Lifetime
