Product Information

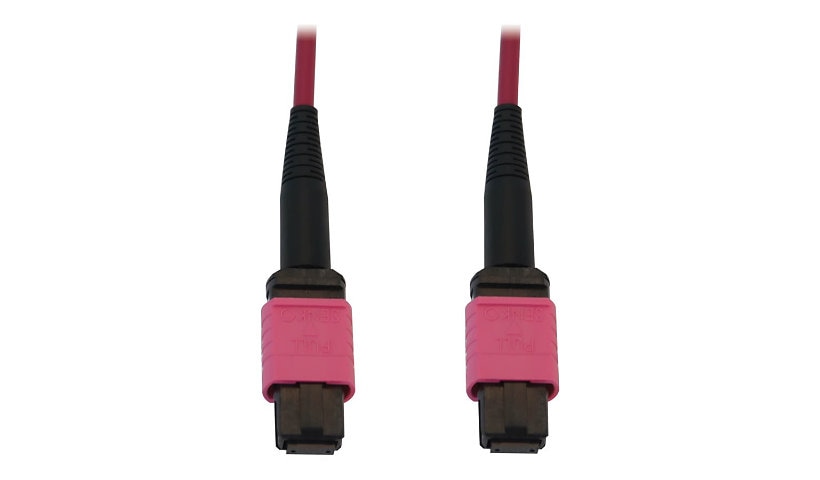

This 15 meter (49.2 ft) Eaton Tripp Lite Series cable carries 12 fibers of OM4 50/125 multimode between two female MTP/MPO-12 PC connectors with push/pull tabs. It is designed for the higher bandwidth that high density patching between data center MDFs and IDFs demands, and it is a good fit for 100G Ethernet. Older 10 Gb and 25 Gb gear can use it too, which keeps it useful through upgrades.
The magenta jacket identifies it as OM4 in a crowded patch panel, which helps prevent mix ups and accidental disconnects. Its round low smoke zero halogen (LSZH) jacket limits toxic smoke if it burns, making it suitable for poorly ventilated areas.
General
Brand: Tripp Lite
Product line: Eaton Tripp Lite Series
Part number: N845B-15M-12-MG
Cable type: Network cable
Package quantity: 1
Cable and Fiber
Length: 15 m (49.2 ft)
Fiber: OM4 multimode, 50/125 µm
Fiber count: 12
Jacket: LSZH
NEC rating: OFNR
Color: Magenta
Features: Halogen-free
Connectors
Connectors: MTP/MPO-12 PC (female) to MTP/MPO-12 PC (female), push/pull tabs
Physical and Environmental
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Compliance and Warranty
Manufacturer warranty: Limited Lifetime
