Product Information

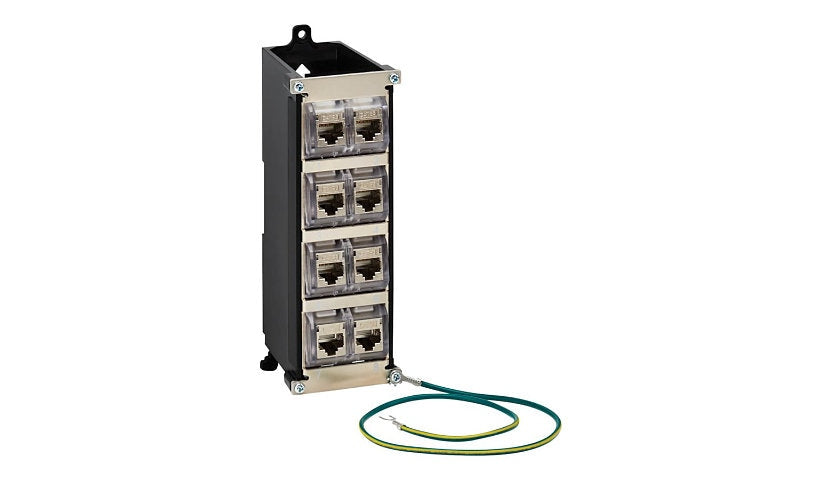

This DIN-rail patch panel comes with eight Cat6a shielded RJ45 in-line couplers for organized industrial Ethernet installs. It supports up to 10 Gbps and PoE++, has labeled, numbered ports with EMI/RFI filtering, and is RoHS and UKCA compliant. Backed by a limited lifetime warranty.
Key Features
- 8-port DIN rail panel
- Cat6a shielded couplers
- 10 Gbps, PoE++
- Numbered ports
- Metal housing
- Limited lifetime warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: N063-008-6A-SH
Product Type: Patch panel
Category: Patch panels, outlets and components
Placement: DIN rail mountable
Connectivity
Connectors Provided: 8 x RJ-45 female
Technical Information
Features: EMI filtering, Labeled, Numbered ports, PoE++ support, RFI filtering, Up to 10Gbps data transfer, UPoE support, With mounting clip
Dimensions and Weight
Width: 3 inch
Height: 6.1 inch
Depth: 2.2 inch
Material: Metal, Plastic
Color: Black, Silver
Included Item
Packaged Quantity: 1
Package Includes: 4 x screws, 8 x RJ-45 couplers, Grounding wire, Washer
Additional Information
Ports: 8 ports
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Operating Humidity: 10 - 85% RH (non-condensing)
Cable & Wiring Technology: Shielded
Wall Outlet Connectors: RJ-45 X 8
Cable Category: CAT 6a
Certifications and Listing
Compliant Standards: IEEE 802.3bt
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
