Product Information

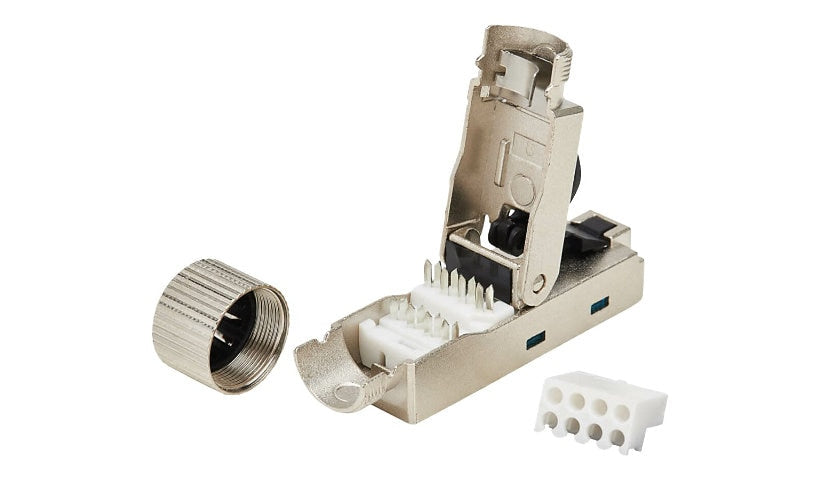

This shielded Cat6a RJ45 plug is designed for field installation, simplifying device hookups above ceilings where a faceplate is not practical or where plenum-rated parts are required. It supports Modular Plug Terminated Link (MPTL) topology, takes 22–27 AWG cable with a 0.24–0.35 in jacket, supports IEEE 802.3bt PoE, and meets UL 1863 and UL 2043. It is TAA compliant. Backed by a limited lifetime warranty.
Key Features
- Cat6a shielded field plug
- MPTL topology
- 22–27 AWG
- IEEE 802.3bt PoE
- UL 2043, TAA compliant
- Limited lifetime warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: N232-SHC6A-1
Network Cable Type: Network connector
Connectivity
Connector A: 110 IDC
Connector A Quantity: 1
Connector B: RJ-45
Connector B Gender: Male
Connector B Quantity: 1
Connector Plating: Nickel
Technical Information
Wire Gauge (AWG): 22/27
Shield Construction: STP
Key Capabilities: Gigabit Ethernet support, Gold plated contacts
Features: 100 Watt maximum input power, EMI/RFI protection, Field assembly, IDC termination style, Metal housing, PoE++ ready, Power over Ethernet (PoE), Toolless, Zinc die-cast housing
Dimensions and Weight
Width: 0.5 inch
Height: 0.7 inch
Depth: 1.9 inch
Color: Black, Silver
Included Item
Packaged Quantity: 1
Additional Information
Category: CAT 6a
Connector Boot Diameter: 0.24 in - 0.35 in
Wiring Scheme: T568A/B
Max Operating Temperature: 140 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Certifications and Listing
Compliant Standards: IEEE 802.3bt
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
