Product Information

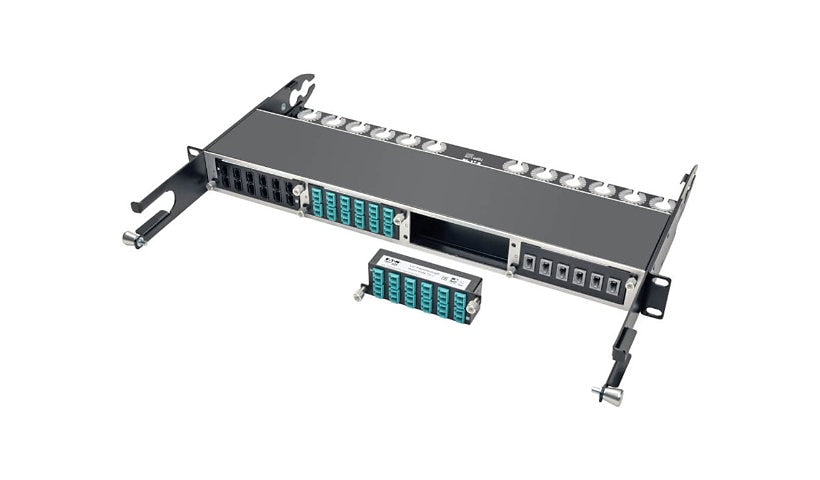

Packing 12 LC duplex ports into one module, this 10Gb pass-through cassette slots into Tripp Lite N484 chassis: an N484-01U takes four of them and an N484-00U takes one. Each duplex LC link is rated for 10GbE with a very low 0.35 dB maximum insertion loss, and it meets IEEE 802.3ae and ANSI T11.2. Installation needs no tools. Backed by a limited lifetime warranty.
Key Features
- 12 LC duplex fiber cassette
- 10GbE rated
- 0.35 dB max insertion loss
- For N484 chassis
- Tool-less install
- Limited lifetime warranty
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: N484-12LC
Product Type: Fiber optic cassette
Category: Patch panels, outlets and components
Connectivity
Connectors Provided: 24 x LC female
Dimensions and Weight
Width: 4.4 inch
Height: 1.4 inch
Depth: 0.9 inch
Weight: 4.8 ounce
Material: Cold-rolled steel
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Ports: 12 ports
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: -4 degree Fahrenheit
Cable & Wiring Technology: Fiber optic
Wall Outlet Connectors: LC x 24
Certifications and Listing
Compliant Standards: ANSI T11.2/IEEE 802.3ae
Warranty
Limited Warranty: Limited Lifetime
