Product Information

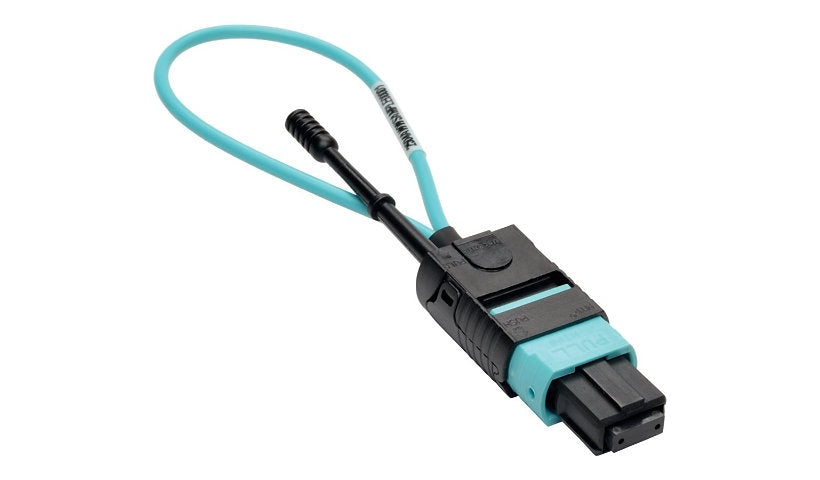

The Eaton Tripp Lite N844-LOOP-12F is an MTP/MPO male loopback tester for 50/125 OM3 multimode fiber, used in test and measurement work that needs signal looping in an MTP/MPO form factor. It has a push-pull tab for easy removal, comes with a dust cap and is aqua.
Key Features
- MTP/MPO loopback
- OM3 50/125 multimode
- Male connector
- Push-pull tab
- Dust cap included
- Aqua color
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: MTP / MPO Fiber Optic Loopback Tester Multimode 50/125um OM3
Packaged Quantity: 1
Color: Aqua
Color Category: Blue
Network and Communication
Network Cable Type: Loopback cable
Connectivity
Left Connector Type: MTP/MPO multi-mode
Left Connector Gender: Male
Left Connector Quantity: 1
Technical Information
Core Diameter: 50 / 125 micron
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Physical Characteristics
Wires per Cable: 6
Included Items
Technology: Fiber optic
Certifications and Listing
Compliant Standards: OM3
Warranty
Limited Warranty: Limited Lifetime
