Product Information

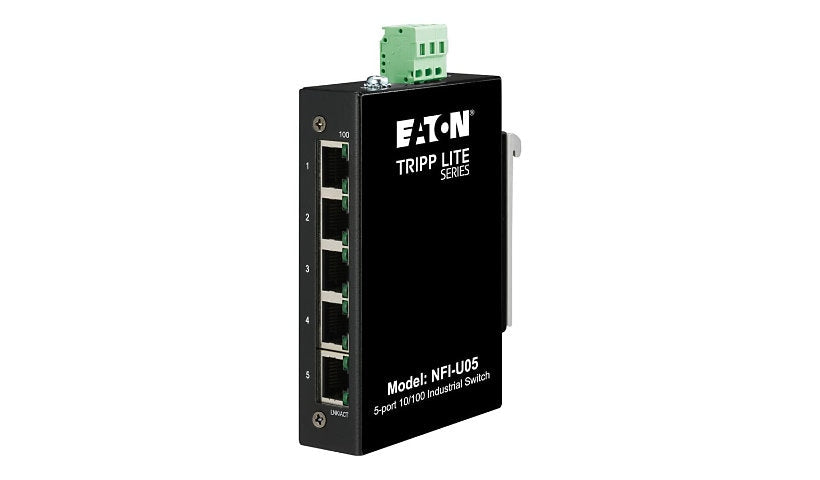

The Eaton Tripp Lite NFI-U05 is a ruggedized unmanaged switch with five 10/100 ports in an aluminum housing. It works from -40 to 167 °F and needs no setup, with a DIN rail clip included.
Key Features
- 5 x 10/100 RJ-45 ports
- Operating range -40 to 167 °F
- Rugged aluminum housing
- Unmanaged, plug and play
- DIN rail clip included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Industrial Ethernet Switch 5-Port Unmanaged - 10/100 Mbps, Ruggedized, DIN/Wall Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Fast Ethernet
Manageable: No
Features: Aluminum housing, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex mode, Rugged
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100
Interface Provided: 5 x 100Base-TX RJ-45
Power
Required Voltage: DC 12 - 48 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 176 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Status
Dimensions and Weight
Height: 4.3 inch
Width: 0.9 inch
Depth: 2.9 inch
Weight: 6.74 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, REACH, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
