Product Information

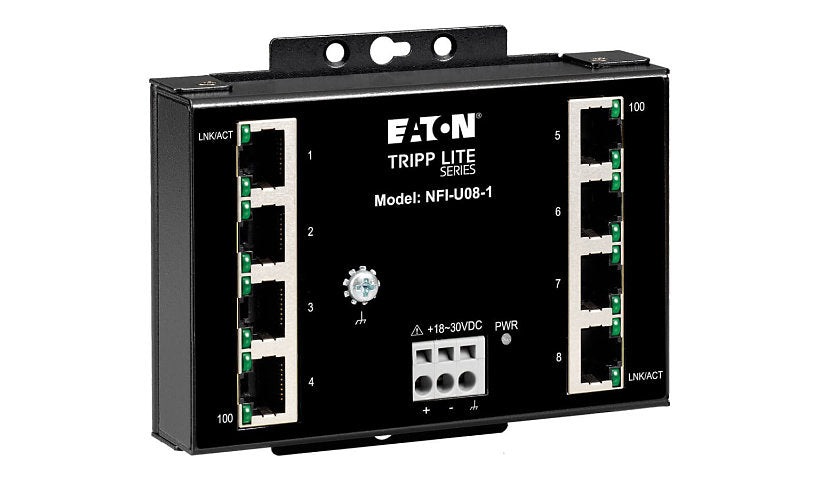

The Eaton Tripp Lite NFI-U08-1 is a ruggedized unmanaged switch with eight 10/100 ports and 1.6 Gbps of capacity. It handles -40 to 167 °F and includes both a DIN rail clip and wall mount brackets.
Key Features
- 8 x 10/100 RJ-45 ports
- 1.6 Gbps switching capacity
- Operating range -40 to 167 °F
- Rugged metal housing
- DIN rail clip and wall brackets included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Industrial Ethernet Switch 8-Port Unmanaged - 10/100 Mbps, Ruggedized, DIN/Wall Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Manageable: No
Performance: Switching capacity: 1.6 Gbps
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, MAC address learning, Metal housing, Rugged
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100
Interface Provided: 8 x 100Base-T RJ-45
Power
Required Voltage: DC 18 - 30 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: LAN, Link/activity, Power, Receive, Transmit
Dimensions and Weight
Height: 1.9 inch
Width: 4.3 inch
Depth: 0.9 inch
Weight: 6.7 ounce
Included Items
Included Accessories: DIN-rail clip, Wall mount brackets
Certifications and Listing
Compliant Standards: FCC, IEEE 802.3, IEEE 802.3u, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
