Product Information

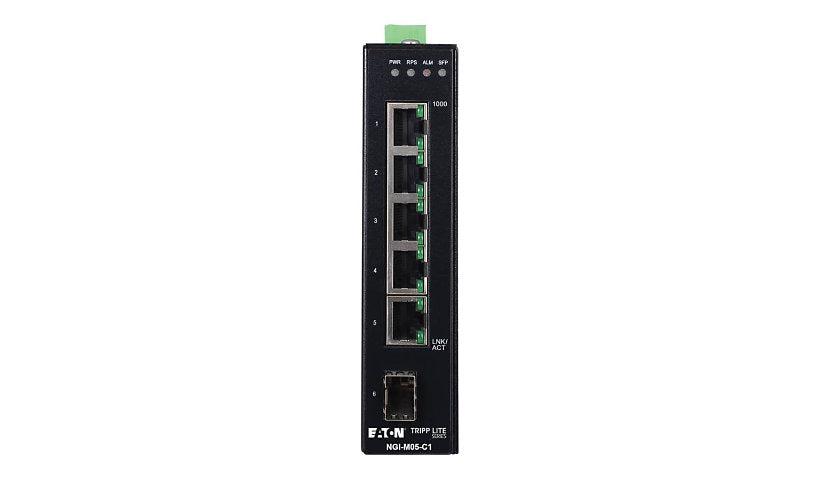

Eaton's Tripp Lite NGI-M05-C1 is a managed industrial switch with five Gigabit RJ-45 ports and one Gigabit SFP uplink. It runs from -40 to 167 F in a fanless metal housing for DIN rail mounting, with CLI or web management and 12 Gbps of switching capacity.
Key Features
- 5 x 10/100/1000 RJ-45 ports
- 1 x Gigabit SFP uplink
- -40 to 167 F operating range
- Fanless metal housing
- CLI and web management
- DIN rail clip included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: 5-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, GbE SFP Slot, -40° to 75°C, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Switching capacity: 12 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DHCP snooping, Fanless, Flow control, Full duplex mode, MAC address learning, Metal housing, RMON statistic counter, SNMP statistic counter, Storm Control
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000
Ports (2nd) Quantity: 1
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 1 x 1000Base-X SFP uplink, 5 x 10/100/1000 Base-T RJ-45
Power
Required Voltage: DC 20 - 57 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Status
Dimensions and Weight
Height: 5.4 inch
Width: 1.2 inch
Depth: 4.1 inch
Weight: 18.69 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
