Product Information

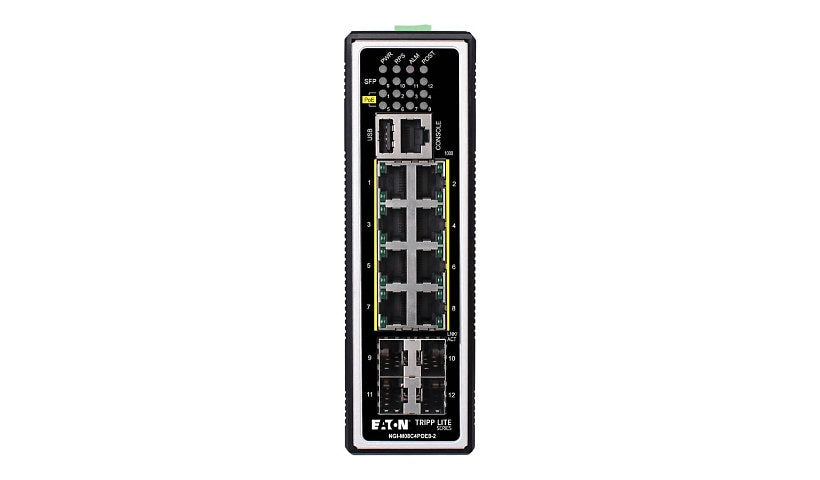

Eaton's Tripp Lite NGI-M08C4POE8-2 is a Layer 2 managed industrial switch with eight Gigabit PoE+ ports at up to 30 W and four Gigabit SFP uplinks. It has a 240 W PoE budget, runs on DC power from -40 to 167 F in a fanless metal housing for DIN rail, and is TAA compliant.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x Gigabit SFP uplinks
- 240 W PoE budget
- -40 to 167 F, fanless metal
- DIN rail clip, DC power
- Layer 2 managed, TAA compliant
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 1 Gbps, PoE+ 30W, 4 GbE SFP Ports, -40° to 75°C, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Switching capacity: 24 Gbps
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, Fanless, Flow control, Full duplex mode, MAC address learning, Metal housing, RMON statistic counter, SNMP statistic counter, Storm Control
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 1
Ports Type (2nd): USB 2.0
Ports (3rd) Quantity: 4
Interface Provided: 1 x USB 2.0, 4 x 1000Base-X SFP, 8 x 10/100/1000 Base-T (PoE) RJ-45
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1000Base-X SFP (uplink)
Power
Required Voltage: DC 24 - 57 volt
PoE Budget: 240 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Data, LAN, PoE, Power, Receive, Transmit
Dimensions and Weight
Height: 6.3 inch
Width: 2 inch
Depth: 4.7 inch
Weight: 34.56 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: FCC, IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, Plug and Play, REACH, RoHS
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
