Product Information

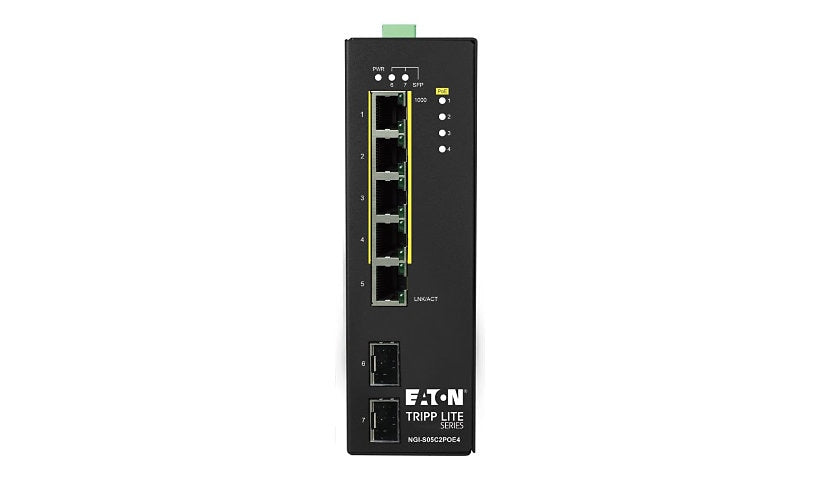

Eaton's Tripp Lite NGI-S05C2POE4 is a lite managed industrial switch with five Gigabit PoE+ ports at up to 30 W each and two Gigabit SFP uplinks. It has a fanless metal housing for DIN rail mounting, 14 Gbps of switching capacity and web or mobile app management.
Key Features
- 5 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 2 x Gigabit SFP uplinks
- 120 W PoE budget (per spec sheet)
- 14 Gbps switching capacity
- Fanless metal housing, DIN rail clip
- Lite managed, VLAN, QoS, DHCP snooping
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: 5-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, -10° to 60°C, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Switching capacity: 14 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, Fanless, Flow control, Full duplex mode, MAC address learning, Metal housing, RMON statistic counter, SNMP statistic counter, Storm Control
Smart: Yes
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1000Base-X SFP (uplink)
Interface Provided: 2 x 1000Base-X SFP uplink, 5 x 10/100/1000 Base-T (PoE) RJ-45
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 24 - 57 volt
PoE Budget: 120 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Data, LAN, PoE, Power, Receive, Transmit
Dimensions and Weight
Height: 6.3 inch
Width: 2 inch
Depth: 4.7 inch
Weight: 30.33 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
