Product Information

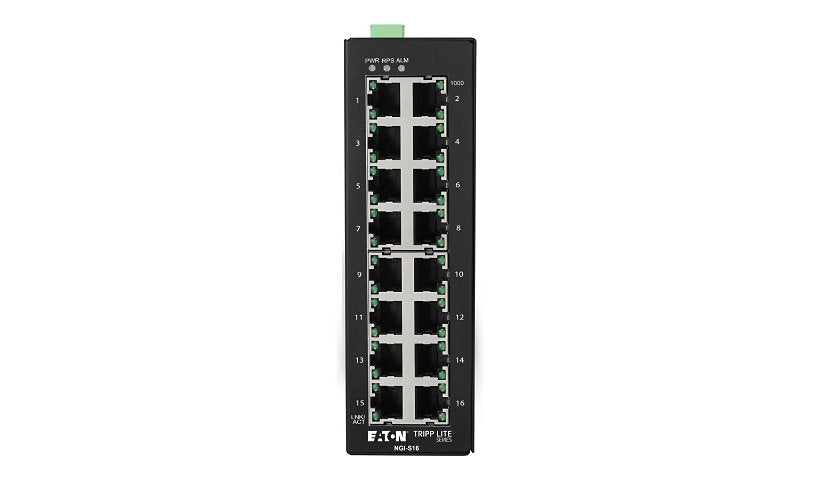

Eaton's Tripp Lite NGI-S16 is a lite managed industrial switch with 16 Gigabit ports and 32 Gbps of switching capacity. It runs from 14 to 140 F (-10 to 60 C) in a fanless metal housing for DIN rail mounting, with VLAN, DHCP snooping and storm control.
Key Features
- 16 x 10/100/1000 RJ-45 ports
- 32 Gbps switching capacity
- 14 to 140 F (-10 to 60 C)
- Fanless metal housing
- Lite managed, DHCP snooping
- DIN rail clip included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: 16-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, -10° to 60°C, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Performance: Switching capacity: 32 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DHCP snooping, Fanless, Flow control, Full duplex mode, MAC address learning, Metal housing, RMON statistic counter, SNMP statistic counter, Storm Control
Smart: Yes
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 10/100/1000 Base-T RJ-45
Power
Required Voltage: DC 12 - 60 volt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Status
Dimensions and Weight
Height: 6.3 inch
Width: 2 inch
Depth: 4.7 inch
Weight: 32.1 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
