Product Information

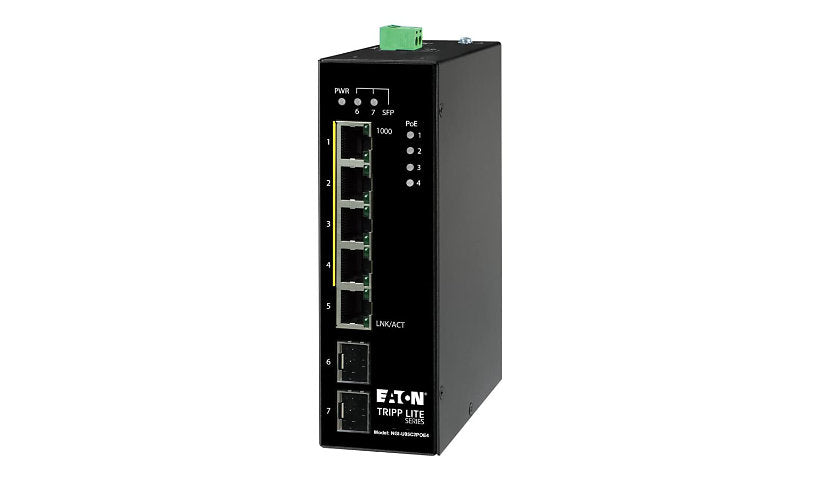

The Eaton Tripp Lite NGI-U05C2POE4 is an unmanaged industrial switch with four Gigabit PoE+ ports, one Gigabit port and two SFP uplinks, sharing a 120 W PoE budget. It mounts on a DIN rail, uses DC power and runs from 14 to 140 °F.
Key Features
- 4 x Gigabit PoE+ ports + 1 x Gigabit port
- 2 x Gigabit SFP uplinks
- 120 W PoE budget
- 14 Gbps switching capacity
- Operating range 14 to 140 °F
- DIN rail mount, DC power
- TAA compliant
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Unmanaged Industrial Gigabit Ethernet Switch 5-Port - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Manageable: No
Performance: Switching capacity: 14 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), Flow control, MAC address learning, Metal housing
Connectivity
Ports: 5
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100/1000
Ports (3rd) Quantity: 2
Interface Provided: 1 x 10/100/1000 Base-T RJ-45, 2 x 1000Base-X SFP, 4 x 10/100/1000 Base-T (PoE) RJ-45
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1000Base-X SFP (uplink)
Power
Required Voltage: DC 24 - 57 volt
PoE Budget: 120 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Data, LAN, PoE, Power, Receive, Transmit
Dimensions and Weight
Height: 2 inch
Width: 6.3 inch
Depth: 4.7 inch
Weight: 30.33 ounce
Certifications and Listing
Compliant Standards: FCC, IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
