Product Information

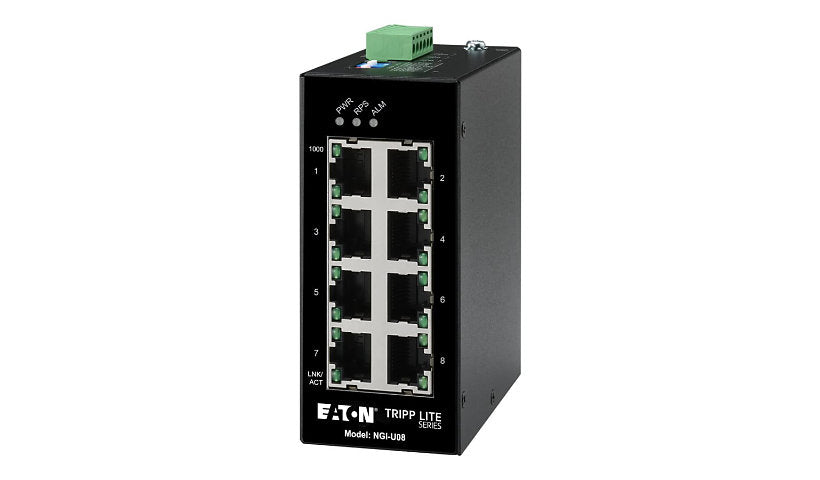

Eaton's Tripp Lite NGI-U08 is a rugged metal switch with eight Gigabit ports for factory floors and tight spaces. It runs from -40 to 167 °F, provides 16 Gbps of capacity and clips onto a DIN rail.
Key Features
- 8 x Gigabit RJ-45 ports
- 16 Gbps switching capacity
- Operating range -40 to 167 °F
- Rugged metal housing
- DIN rail clip included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Manageable: No
Performance: Switching capacity: 16 Gbps
MAC Address Table Size: 2000 entries
Jumbo Frame Support: 9000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, MAC address learning, Metal housing, Rugged
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 10/100/1000 Base-T RJ-45
Power
Required Voltage: DC 9 - 57 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 176 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: LAN, Link/activity, Power, Receive, Transmit
Dimensions and Weight
Height: 4.6 inch
Width: 3.9 inch
Depth: 2 inch
Weight: 17.64 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, IEEE 802.3, IEEE 802.3u, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
