Product Information

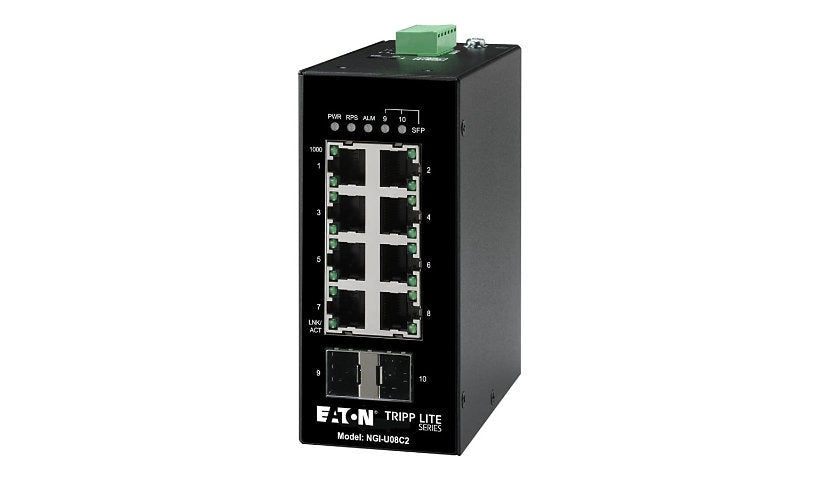

The Eaton Tripp Lite NGI-U08C2 is a rugged unmanaged switch with eight Gigabit RJ-45 ports and two Gigabit SFP uplink slots in a metal housing. It runs from -40 to 167 °F, offers 20 Gbps of capacity and clips onto a DIN rail.
Key Features
- 8 x Gigabit RJ-45 ports
- 2 x Gigabit SFP uplink slots
- 20 Gbps switching capacity
- Operating range -40 to 167 °F
- Rugged metal housing
- DIN rail clip included
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, 2 GbE SFP Slots, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 20 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, Full duplex mode, Metal housing, Rugged
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 2 x 1000Base-X SFP, 8 x 10/100/1000 Base-T RJ-45
Power
Required Voltage: DC 24 - 48 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 176 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Status
Dimensions and Weight
Height: 3.9 inch
Width: 2 inch
Depth: 4.6 inch
Weight: 19.68 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: FCC, REACH, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
