Product Information

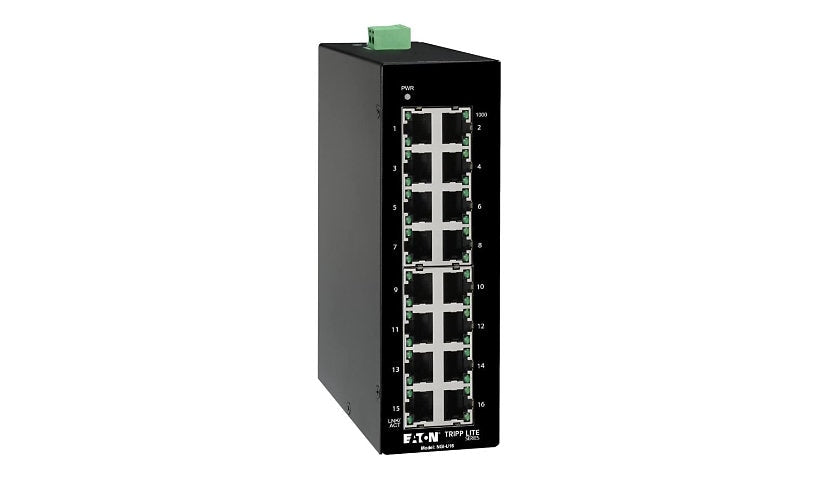

The Eaton Tripp Lite NGI-U16 is a rugged unmanaged switch with sixteen Gigabit ports in a metal housing, rated for -40 to 167 °F. It offers 32 Gbps of capacity, draws about 16 W and clips onto a DIN rail.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching capacity
- Operating range -40 to 167 °F
- Rugged metal housing
- DIN rail clip included
- About 16 W power use
Product Information
Brand: Tripp Lite
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Unmanaged Industrial Gigabit Ethernet Switch 16-Port - 10/100/1000 Mbps, DIN Mount
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Manageable: No
Performance: Switching capacity: 32 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Flow control, MAC address learning, Metal housing, Rugged
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 10/100/1000 Base-T RJ-45
Power
Device Type: External power adapter
Required Voltage: DC 12 - 48 volt
Power Consumption Operational: 16 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: LAN, Link/activity, Power, Receive, Transmit
Dimensions and Weight
Height: 6.3 inch
Width: 4.7 inch
Depth: 1.9 inch
Weight: 31.74 ounce
Included Items
Included Accessories: DIN-rail clip
Certifications and Listing
Compliant Standards: EN 55011, EN 55032, EN 61000-6-2, EN 61000-6-4, EN55024, FCC Part 15, IEEE 802.3, IEEE 802.3u, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
