Product Information

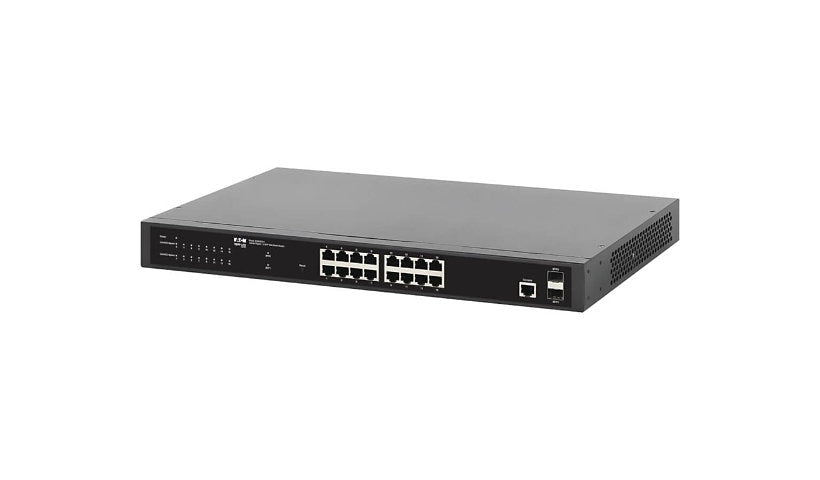

Eaton's Tripp Lite NGS16C2-1 is a managed rack switch with 16 Gigabit ports and two SFP fiber uplinks. It offers 36 Gbps of switching capacity, QoS, VLAN tagging, DHCP snooping, storm control and 8K jumbo frames.
Key Features
- 16 x 10/100/1000 RJ-45 ports
- 2 x SFP fiber uplinks
- 36 Gbps switching capacity
- QoS, VLAN, DHCP snooping
- Console port, SNMP
- Rack mount, metal housing
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: RMON, SNMP
Performance: Switching capacity: 36 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Features: 2 fans, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Crossover detection, DHCP snooping, Flow control, MAC address auto-learning, Metal housing, Quality of Service (QoS), Reset button, SNMP support, Storm Control, Tagged VLAN, Trunking, VPN support
Smart: Yes
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): 1000Base-SX (uplink)
Interface Provided: 1 x serial (console) RJ-45, 2 x 1000Base-SX uplink, 8 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Power, SFP
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.2 inch
Depth: 17.3 inch
Weight: 4.19 lbs
Included Items
Included Accessories: 4 rubber feet
Cables: Power cable (C14) - 0.6 in
Certifications and Listing
Compliant Standards: CAN/CSA STD. C22.2, CAN/CSA-C22.2 No. 62368-1, FCC Class B certified, FCC Part 15 Class B, IEC 62368-1, RoHS, UKCA, UL 62368-1
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
